Application note:The Quiet Island Concept - Active antivibration

  • Manufactured by: TMC

Quick Overview

Why freeze the house if all you want is a cold beer?



What are the advantages of using Quiet Islands in place of designing a ‘Quiet’ building?



The world’s most sensitive instruments for highly advanced research are increasingly installed in l..

Contact us

Description

Why freeze the house if all you want is a cold beer?



What are the advantages of using Quiet Islands in place of designing a ‘Quiet’ building?



The world’s most sensitive instruments for highly advanced research are increasingly installed in less than ideal environments facing many environmental and building vibration sources.



Ultra-precision instruments, including SEM, cryo-TEM, AFM, STM, and E-Beam Lithography are exploring the sub-nanometer and even the sub-angstrom scale and are required to achieve extremely high resolution and precise measurements. Building floor vibration jeopardizes high-resolution performance and prevents such tools from meeting their design specifications.

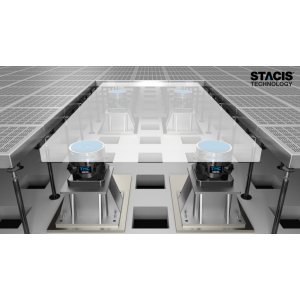

There are two approaches to overcome this: Designing a facility to meet the stringent vibration criteria of extremely precise nanotech equipment (Quiet Building approach) or choosing only a point-of-use vibration cancellation under the sensitive equipment (Quiet Island).





More information:

pdf_logo
More information - PDF 4.2 Meg
