Product Tag(s):

Electro-Damp

  • Manufactured by: TMC

Quick Overview

Cost-effectively combines the best aspects of Stacis®active hard-mount and Electro-Damp®active air-mount vibration isolation systems.
Stacis®, first introduced in 1996, is the world's most advanced active vibration cancellation system. An active hard-mount, Stacisachieves extremely efficient vibration isolation using piezo..

Contact us

Description

Cost-effectively combines the best aspects of Stacis®active hard-mount and Electro-Damp®active air-mount vibration isolation systems.

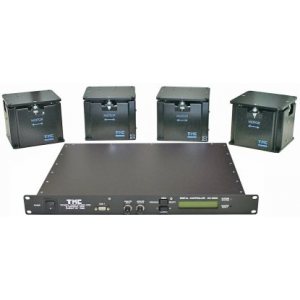

Stacis®, first introduced in 1996, is the world's most advanced active vibration cancellation system. An active hard-mount, Stacisachieves extremely efficient vibration isolation using piezoelectric actuators and a stiff suspension. Electro-Damp®, first introduced nearly 20 years ago, was the first active, inertially damped, pneumatic vibration isolator. Electro-Damp® PZT combines the best features of these two technologies to provide a cost-effective, frame-mountable, stiff, yet extremely efficient, non-pneumatic vibration isolation system.



Features & Benefits

  • Incorporates patented Stacis® technology
  • Extended stroke piezoelectric actuators, up to 60 µm
  • Position repeatability of payload to within 20 µm
  • Frame-mountable design
  • 3 or 6 active degrees-of-freedom
  • Installs easily, no feedforward required
  • Active inertial vibration cancellation system
  • Fast settling time in response to stage motion
  • No soft air suspension
  • Simple, robust, and cost-effective


Datasheet (PDF file - 0.8 Meg)

Ask a question about the Electro-Damp
