SEM-Closure

Manufactured by: TMC

Quick Overview

TMC introduces SEM-Closure™, total environmental protection of scanning electron microscopes

Description

Description

TMC introduces SEM-Closure™, total environmental protection of scanning electron microscopes

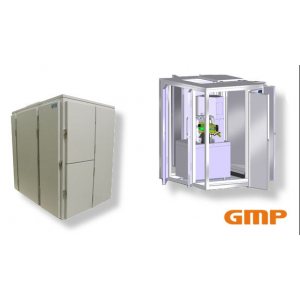

SEM-Closure™ is an acoustic enclosure designed specifically for scanning electron microscopes (SEMs). Together with TMC’s SEM-Base™ floor platform and Mag-NetX™ magnetic field cancellation, SEM-Closure™ provides a total environmental solution to protect sensitive SEMs from all outside interference.

SEM-Closure is designed to accommodate SEM-Base™, an active piezoelectric vibration cancellation floor platform, and Mag-NetXT™ in a sealed and temperature-controlled acoustical chamber – protecting the SEM from vibration, magnetic field disturbances, and acoustic noise.

Integration of the three systems ensures proper fit and compatibility. The vibration isolation system can be inside the enclosure itself. Also, the SEM-Closure frame is designed to accommodate Mag-NetX Helmholtz coils as well as the acoustic panels, eliminating the need for a second frame to house the coils. SEM-Closure provides multiple access points, a heat dissipation system, and provisions for tool plumbing and cabling within the system.

GMP_sem_closure_Vibration

GMP_sem_closure_vibration_details

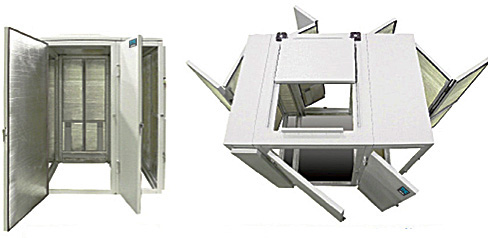

Main door is 36" wide allowing full access to front of SEM. 24" side module also includes a door on front side.

Several hinged doors allow easy access to any side of the SEM for sample preparation, adjustment of accessories and maintenance. Bi-fold doors on sides and rear help minimize clearance requirements. Optional quarter-panel door for quick and easy access.

Main door is 36" wide allowing full access to front of SEM. 24" side module also includes a door on front side.

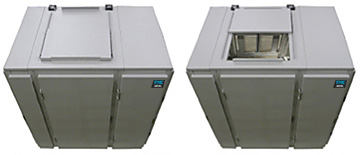

Top panel includes easy-open space-saving hatch door for access to top of SEM. Cam-Lock ensures tight seal.

GMP_sem_closure_details

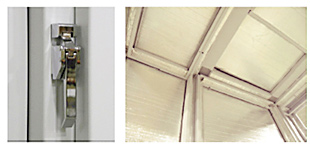

All doors include easy-to-open latches, and tight seal when closed. All panels constructed of TMC proprietary acoustic layering with powder coated steel exterior.
