High-Sensitivity UV Spectrometers Maya

  • Manufactured by: Ocean Optics

Quick Overview

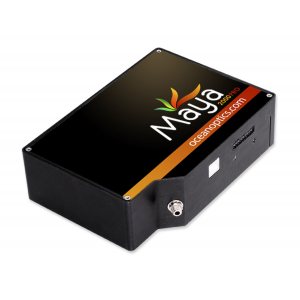

Ocean Optics Maya 2000 series of miniature, high-sensitivity spectrometers are particularly suited to low light-level, UV-sensitive applications such as fluorescence, DNA sequencing and Raman analysis.


The Maya 2000 series consists of the Maya 2000 and the Maya 2000-Pro. Both these miniature spectrometers feature back-thin..

Description

Ocean Optics Maya 2000 series of miniature, high-sensitivity spectrometers are particularly suited to low light-level, UV-sensitive applications such as fluorescence, DNA sequencing and Raman analysis.


The Maya 2000 series consists of the Maya 2000 and the Maya 2000-Pro. Both these miniature spectrometers feature back-thinned 2D FFT-CCD area image sensors which offer high UV response, great signal-to-noise characteristics and wide dynamic range, making them especially suited to low light level applications.
While the Maya 2000 and the Maya 2000-Pro offer similar performance for most parameters, the Maya 2000 has a slightly faster readout time while the Maya 2000-Pro provides better dynamic range and signal-to-noise ratio. Both spectrometers feature 90% quantum efficiency, optical resolution to 0.035nm (FWHM), USB 2.0 interface, 14 grating options and 6 slit width options.


 Key Features



  • Back-Thinned 2D FFT-CCD detector

  • High UV sensitivity

  • 450:1 signal-to-noise ratio

  • Optical resolution 0.035nm (FWHM)

  • 14 grating for coverage 175-1100nm

  • 5, 10, 25, 50 , 100 and 200 µm slits



 Applications



  • Fluorescence

  • DNA sequencing

  • Raman spectroscopy

Datasheet
Datasheet I (PDF file - 207 Ko)

Datasheet
Datasheet II (PDF file - 438 Ko)
