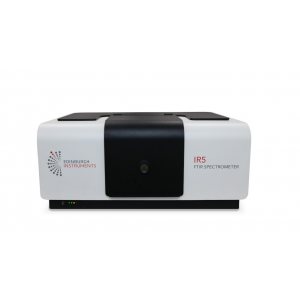

FTIR Spectrometer IR5 - Fourier Transform Infrared Spectrometer

Manufactured by: Edinburgh Instruments

Quick Overview

The IR5 is a high-performance benchtop Fourier Transform Infrared (FTIR) spectrometer from Edinburgh Instruments.

Description

Description

The IR5 is a high-performance benchtop Fourier Transform Infrared (FTIR) spectrometer from Edinburgh Instruments.

The IR5 is the perfect choice for analytical and research applications such as polymer, semiconductor, and pharmaceutical samples, offering simple operation as well as fast and accurate results. IR absorption, transmission, reflectance, and infrared photoluminescence can all be measured in the IR5 using only one software package, Miracle™.

- Outstanding Performance – High sensitivity and spectral resolution
- Photoluminescence Upgrade – Fourier Transform PL upgrade with a choice of laser source
- Configurable – Option for a second detector enhancing sensitivity at selected spectral ranges
- User-friendly – Simple to operate and suitable for all user levels, from beginner to advanced
- Maintenance Free – No maintenance required with moisture control technology
- Miracle™ Software – Powerful and intuitive software designed specifically for the IR5

Specifications
Standard Configuration	Spectral Range	8000 – 350 cm-¹
	Sensitivity	SNR ≥ 20,000:1
	Resolution	0.5 cm-¹, 1 cm-¹, 2 cm-¹, 4 cm-¹, 8 cm-¹, 16 cm-¹, 32 cm-¹
	Accuracy	0.5 cm-¹
	Source	High-intensity ceramic source
	Detector	DLaTGS
	Beamsplitter	Germanium coated KBr
	Hygroscopic Integrity	Integrated desiccants, electronic dry-membrane, embedded LCD and software hygrometers for maintenance-free operation
	Windows	KBr window exchangeable by user
	Operating Voltage	Universal mains input 100-240 VAC, 47-63 Hz
Detector Upgrade	Second Detector	Additional detector fitted to the instrument optimising its spectral range Detector options include InSb, InGaAs, and MCT
PL Upgrade	Fourier Transform Photoluminescence Capability	External PL excitation laser mount, laser is freely exchangeable Dedicated PL sample holder for maximum signal-to-noise ratio Intuitive photoluminescence acquisition wizard in software
Sample Accessories	Transmission Sample Holder	Compatible with films and cuvettes
	Attenuated Total Reflectance (ATR)	Basic and advanced ATR models available with a choice of crystal (diamond, Ge, ZnSe)
	Photoluminescence Sample Holder	Suitable for solid samples, powders, and liquids
	Others	Diffuse reflectance, custom and third-party accessories available
Software	Miracle	Powerful and intuitive software for data acquisition, analysis and presentation, full control of all interferometer, amplifier, temperature and humidity monitoring
	Measurement Types	Transmission, Absorption, Reflection, Kubelka-Munk, FT-PL
	Acquisition Modes	Live signal monitoring, single scan (including user-defined methods), kinetic series
Dimensions	W x D x H	660 mm x 540 mm x 300 mm
	Weight	37 kg

IR5 brochure - PDF 4.8 Meg

Manufacturer Informations

Edinburgh Instruments

Founded in 1971 by Professor S. D. Smith, Edinburgh Instruments Ltd has become one of the world’s largest manufacturers of leading edge spectroscopic instrumentation and gas detection solutions.
