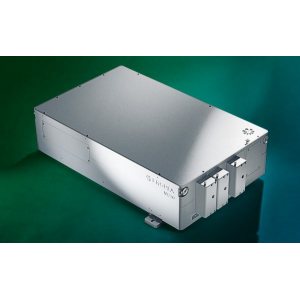

High Energy Broadly Tunable DPSS Lasers - NT230

  • Manufactured by: Ekspla

Quick Overview

NT230 series lasers deliver high up to 10 mJ energy pulses at 100 Hz pulse repetition rate, tunable over a broad spectral range. Integrated into a single compact housing, the diode pumped Q-switched Nd:YAG laser and Optical Param..

Contact us

Description

NT230 series lasers deliver high up to 10 mJ energy pulses at 100 Hz pulse repetition rate, tunable over a broad spectral range. Integrated into a single compact housing, the diode pumped Q-switched Nd:YAG laser and Optical Paramteric Oscillator (OPO) offers hands‑free, no-gap tuning from 192 to 2600 nm. With its 100 Hz repetition rate, the NT230 series laser establishes itself as a versatile tool for many laboratory applications, as laser induced fluorescence, flash photolysis, photobiology, metrology, remote sensing, etc.



Due to the innovative diode‑pumped design, NT230 series lasers feature maintenance-free laser operation for an extended period of time and improved stability (compared with flash-lamp pumped counterparts).

NT230 series systems can be controlled from a remote control pad or/and a computer. The control pad allows easy control of all parameters and features on a backlit system display that is easy to read even with laser safety eyewear.



FEATURES
- Customers recognized reliability
- Two years warranty
- Integrates DPSS pump laser and OPO into a single housing
- Hands-free no-gap wavelength tuning from 192 to 2600 nm *
- Up to 15 mJ pulse energy from OPO
- Up to 100 Hz pulse repetition rate
- Up to 2 mJ output pulse energy in UV
- Less than 5 cm⁻¹ linewidth
- 2 – 5 ns pulse duration
- Electromechanical output shutters
- Transportation handles
- 355 nm & 1064 nm laser outputs
- 532 nm output (optional)
- Remote control via key pad or PC



BENEFITS
- Hands-free wavelength tuning – no need for physical intervention
- The system is widely tunable; 192 – 2600 nm and delivers high pulse energy (up to 15 mJ) which allows investigation of an extensive range of materials
- High repetition rate (up to 100 Hz) and output power enable fast data collection and intensive excitation of materials
- Narrow linewidth (down to 3 cm⁻¹) and superior tuning resolution (1 – 2 cm⁻¹) allow recording of high quality spectra
- High integration level saves valuable space in the laboratory
- Diode pumping reduces maintenance frequency
- Automatic electromechanical output shutters ensure high level of safety
- User friendly extendable handles ease transportation and repositioning of laser
- In-house design and manufacturing of complete systems, including pump lasers, guarantees on-time warranty and post warranty services and spares supply
- Variety of control interfaces: USB, RS232, LAN and WLAN ensures easy control and integration with other equipment
- Attenuator and fiber coupling options facilitate incorporation of NT230 systems into various experimental environments



APPLICATIONS
- Laser-induced fluorescence
- Flash photolysis
- Photobiology
- Remote sensing
- Metrology
- Non-linear spectroscopy
- Photo acoustic imaging
