Optical Parametric Oscillator Mid IR tunable source

  • Manufactured by: TEEM photonics

Quick Overview

Preliminary - OPO source based on Orientation Patterned Ga As



Specifications:



- Tuning ranges: 7.5 - 13µm and 3 - 5µm

- Pulse width: 20 30ns

- Energy per pulse:

- 200..

Description

Preliminary - OPO source based on Orientation Patterned Ga As



Specifications:



- Tuning ranges: 7.5 - 13µm and 3 - 5µm

- Pulse width: 20 30ns

- Energy per pulse:

- 200nJ for Single longitudinal mode beam

- 2µJ for Multiple longitudinal modes beam

- Repetition rate: 300Hz

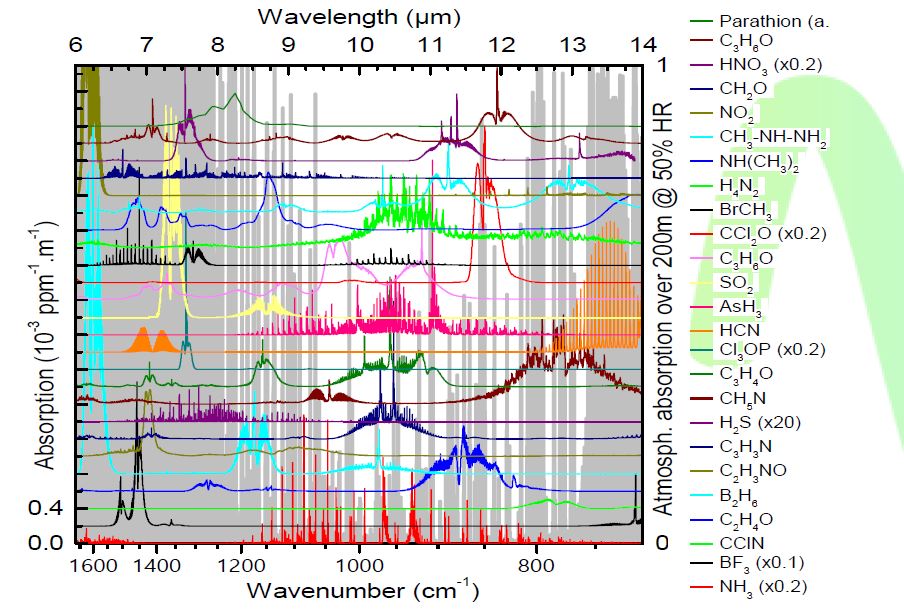

Detection of many species identifiable in the Mid-IR region only (3 to 14μm):



species identifiable in the Mid-IR region



Please contact us for more information

Ask a question about the Optical Parametric Oscillator Mid IR tunable source





Manufacturer Informations

TEEM photonics

    Spin-off from Schneider Electric founded in 1998, Teem Photonics is the leader in passively Q-switched microlasers as well as Photonics Integrated Circuits based on ion exchange technology.
