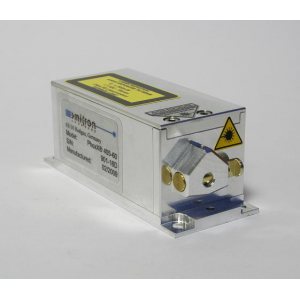

PhoxX+® laser diode modules for CW or modulated applications

  • Manufactured by: Omicron laserage

Quick Overview

The PhoxX+® Diode Laser Series offers full ON/OFF Deepstar® with >180MHz digital Modulation bandwitdh at a compact design. Additionaly the lasers can be modulated with >25MHz analogue intensity Modulation. A broad variety of wavelengths and single-mode emission up to 300mW cover a wide range of applications. Easy integration into e..

Contact us

Description

The PhoxX+® Diode Laser Series offers full ON/OFF Deepstar® with >180MHz digital Modulation bandwitdh at a compact design. Additionaly the lasers can be modulated with >25MHz analogue intensity Modulation. A broad variety of wavelengths and single-mode emission up to 300mW cover a wide range of applications. Easy integration into existing or future designs is assured by versatile input signal types.



The USB2.0 and the RS-232 interface allow deep integration of the lasers into the applications process.



Key Facts:



• Small and compact design
• 23 different wavelengths between 375nm and 830nm
• Single-Mode optical output powers up to 300mW
• High-Stability CW operation
• High-Speed full ON/OFF digital and/or analogue modulation
• Electronic shutter function (laser inhibit) with >300kHz full ON/OFF capability
• Automatic Aging Compensation (AAC) function
• 0.7mm beam diameter option
• Flexible, customer configurable input signaling
• Industry standard footprint
• Drivers for Metamorph, LabVIEW and Micromanager available





Specifications PhoxX Diode Laser Series



Wavelengths & Powers
(other wavelengths and
powers on request)
PhoxX® 375-20 375nm / 20mW
PhoxX® 375-70 375nm / 70mW
PhoxX® 395 395nm / 120mW
PhoxX® 405-20 405nm / 20mW
PhoxX® 405-60 405nm / 60mW
PhoxX® 405-120 405nm / 120mW
PhoxX® 405-300  405nm / 300mW
PhoxX® 415 415nm / 120mW
PhoxX® 425 425nm / 120mW
PhoxX® 445-50 445nm / 50mW
PhoxX® 445-100  445nm / 100mW
PhoxX® 457  457nm / 100mW
PhoxX® 460  460nm / 100mW
PhoxX® 473-20 473nm / 20mW
PhoxX® 473-80 473nm / 80mW
PhoxX® 473-100 473nm / 100mW
PhoxX® 473-300 473nm / 300mW
PhoxX® 488-25 488nm / 25mW
PhoxX® 488-60 488nm / 60mW
PhoxX® 488-80 488nm / 80mW
PhoxX® 488-100  488nm / 100mW
PhoxX® 488-150  488nm / 150mW
PhoxX® 488-200 488nm / 200mW
PhoxX® 505-80 505nm / 80mW
PhoxX® 515-25 515nm / 25mW
PhoxX® 515-50 515nm / 50mW
PhoxX® 515-80 515nm / 80mW
PhoxX® 515-100 515nm / 100mW
PhoxX® 515-300 515nm / 300mW
PhoxX® 633-100 633nm / 100mW
PhoxX® 638-40 638nm / 40mW
PhoxX® 638-100 638nm / 100mW
PhoxX® 638-150 638nm / 150mW
PhoxX® 638-200 638nm / 200mW
PhoxX® 642 642nm / 140mW
PhoxX® 647 647nm / 140mW
PhoxX® 660 660nm / 130mW
PhoxX® 685 685nm / 50mW
PhoxX® 705 705nm / 40mW
PhoxX® 730 730nm / 40mW
PhoxX® 785-120 785nm / 120mW
PhoxX® 785-200 785nm / 200mW
PhoxX® 808 808nm / 140mW
PhoxX® 830 830nm / 140mW
PhoxX® 850 850nm / 100mW
PhoxX® 945 945nm / 200mW
PhoxX® 980 980nm / 100mW
PhoxX® 1030 1030nm / 100mW
PhoxX® 1060 1060nm / 150mW
PhoxX® 1080 1080nm / 80mW
PhoxX® 1310 1310nm / 50mW
PhoxX® 1550 1550nm / 100mW

Beam diameter
(other diameters on request)

1.0...1.5mm (1/e²), (depends on wavelength)

0.7mm (1/e²) +/- 0.1mm with option XX.DSO

Beam quality M²

<1.15    (1.05 typical)

Astigmatism (corrected)

<0.2*ZR

Beam ellipticity

<1.15:1

Polarisation

>100:1 vertical

Long term power stability

<0.5% / 8h (in CW operation mode)
< 2% / 8h (in modulation mode)

RMS Noise  20Hz...10MHz
                      10MHz...500MHz

<0.2% (CW)
<0.2% (CW)

Operation Modes
    Mode 1
    Mode 2
    Mode 3
    Mode 4


CW operation
Analogue modulation
Digital modulation
Mixed analogue & digital modulation

Digital modulation
    Input signal type

>180MHz
TTL (200 Ohm)  /  0...1V (50Ohm)  /  LV-PECL  /  PECL  /  LVDS
(user configurable)

Analogue modulation
    Input signal type

>3MHz
0...1V (50Ohm)  /  0...5V (1,2kOhm)
(user configurable)

Laser Enable (electronic shutter)
    Input signal type

>300kHz (full ON/OFF)
TTL (2kOhm)

Rise- and falltime

Digital:              < 1.5ns
Analogue:        < 100ns
Laser Enable: < 200ns

Extinction ratio

Digital:             >250 : 1
Analogue:       >1000 : 1
Laser Enable: infinite (full ON/OFF)

Supply voltage

5.00 VDC   +/- 0.50 VDC

Control interface

RS-232 and USB 2.0

Dimensions laser head

100 x 40 x 40mm  (l x w x h)

Dimensions laser controller

120 x 62 x 40mm  (l x w x h)
