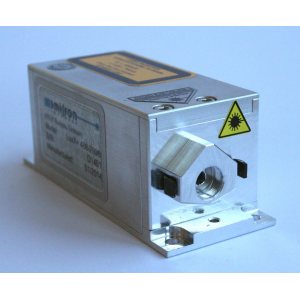

The Omicron LuxX+ Laser Series

  • Manufactured by: Omicron laserage

Quick Overview

LuxX+® Compact high-performance diode laser modules for biotech and industrial applications



The Omicron LuxX+® Laser Series offers high performance at a compact design. A broad variety of wavelengths and single-mode emission up to 300mW cover a wide range of applications. Easy integration into existing o..

Description

LuxX+® Compact high-performance diode laser modules for biotech and industrial applications



The Omicron LuxX+® Laser Series offers high performance at a compact design. A broad variety of wavelengths and single-mode emission up to 300mW cover a wide range of applications. Easy integration into existing or future designs is assured by versatile input signal types. The USB2.0 and the RS-232 interface support deep integration of the lasers into the application´s process.



Key Facts:

• Compact One-Box design
• 23 different wavelengths between 375nm and 1550nm
• Astigmatism correction for perfect focal quality
• Single-Mode optical output powers up to 300mW
• High-Stability CW operation (ACC and APC mode)
• Fast analogue modulation >3MHz
• Ultrafast digital modulation >250MHz
• Electronic shutter function (laser inhibit) with >500kHz full ON/OFF capability
• Automatic Aging Compensation (AAC) function
• USB2.0 and RS-232 interface
• 0.7mm beam diameter option
• Industry standard footprint
• Drivers for Metamorph, LabVIEW and Micromanager available



datasheet LuxX+
Datasheet (PDF- 5,3 Mo)

Ask a question about the The Omicron LuxX+ Laser Series





Manufacturer Informations

Omicron laserage

    For more than 20 years now, Omicron has been developing, building and producing its systems inhouse. Product quality is ensured with the aid of modern measurement technology & development and production meet both European and American standards.


    Omicron Laser Catalogue
    Omicron Laser Catalogue
    (PDF - 4 Meg)
