Desktop Diode Laser Series - LaserNest

  • Manufactured by: Omicron laserage

Quick Overview

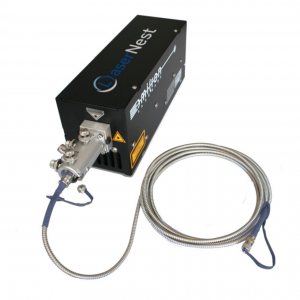

Omicron's "LaserNest” systems are a combination of the well-established LuxX+ diode lasers and a desktop-style housing. This combination represents an easy to use plug&play laser light source for science, research and industry. The high-performance systems can be equipped with one laser module of wavelengths from UV to the nea..

Contact us

Description

Omicron's "LaserNest” systems are a combination of the well-established LuxX+ diode lasers and a desktop-style housing. This combination represents an easy to use plug&play laser light source for science, research and industry. The high-performance systems can be equipped with one laser module of wavelengths from UV to the near IR range and offer fast analogue intensity modulation with up to 3MHz and high-speed digital modulation up to 250MHz. Additional electronic shutter function provides full ON/OFF modulation with a switching time of <1µs and frequencies up to 500kHz.



The light output can be either single-mode (polarization-maintaing) fibres, multi-mode fibres or Liquid Light Guides.



The LuxX+ laser modules within the “LaserNest” are available with up to 500 milliwatt of optical output power and more than 30 different wavelengths between 375 and 1550nm. Optional clean-up filters and a fail-safe laser safety shutter can be directly installed in the system to adapt the “LaserNest” systems to the customer’s application and safety requirements. Modulation inputs with software-selectable voltage ranges and impedance ensure easy interfacing to external devices like cameras, microscopes or DAC cards.



The device can be conveniently controlled via the integrated USB-2.0 interface by the included software „Omicron Control Center“ or third party software.



Application examples:

- Flow Cytometry
- Confocal Microscopy
- Widefield Microscopy
- Lightsheet Microscopy (SPIM)
- Frequency-Domain FLIM
- Optogenetics



pdf_logo
Laser Nest Datasheet- PDF 2.1 Meg



Ask a question about the Desktop Diode Laser Series - LaserNest





Manufacturer Informations

Omicron laserage

    For more than 20 years now, Omicron has been developing, building and producing its systems inhouse. Product quality is ensured with the aid of modern measurement technology & development and production meet both European and American standards.


    Omicron Laser Catalogue
    Omicron Laser Catalogue
    (PDF - 4 Meg)
