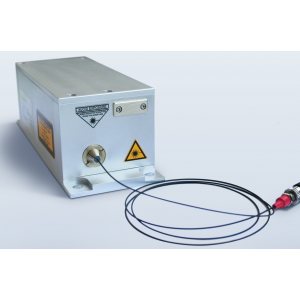

BrixX Diode Laser Series - up to 250mW

  • Manufactured by: Omicron laserage

Quick Overview

The BrixX® diode laser series offers the possibility of integration and operation of different industry standard laser diode packages like 5.6mm or 9mm TO-can, C/B-mount and Butterfly and provides free-space or fiber pigtailed light delivery. A broad variety of wavelengths and single-mode or multi-mode output powers up to 2.5 Watt can be int..

Contact us

Description

The BrixX® diode laser series offers the possibility of integration and operation of different industry standard laser diode packages like 5.6mm or 9mm TO-can, C/B-mount and Butterfly and provides free-space or fiber pigtailed light delivery. A broad variety of wavelengths and single-mode or multi-mode output powers up to 2.5 Watt can be integrated into the BrixX® platform. The versatility of the BrixX® covers a wide range of applications like RAMAN spectroscopy, machine vision, metrology and many more. The USB2.0 and the RS-232 interface allow deep integration of the lasers into the application´s process.


Key Facts:

• Many different wavelengths between 375nm and 2080nm available
• Single-Mode optical output powers up to 1000mW
• Multi-Mode optical output powers up to 3.5 Watt
• High-Stability CW operation (ACC and APC mode)
• Fast analogue and digital modulation
• Electronic shutter function (laser inhibit) with >500kHz full ON/OFF capability
• Integrated power monitoring
• Automatic Aging Compensation (AAC) function
• USB2.0 and RS-232 interface
• Fiber output or free space emission (depends on model)
• Drivers for Metamorph, LabVIEW and Micromanager available

Ask a question about the BrixX Diode Laser Series - up to 250mW





Manufacturer Informations

Omicron laserage

    For more than 20 years now, Omicron has been developing, building and producing its systems inhouse. Product quality is ensured with the aid of modern measurement technology & development and production meet both European and American standards.


    Omicron Laser Catalogue
    Omicron Laser Catalogue
    (PDF - 4 Meg)
