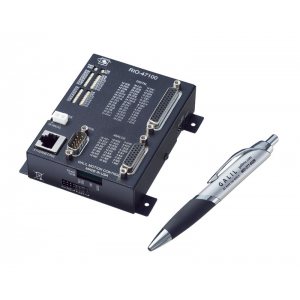

RIO-47xxx - Pocket PLC with Ethernet/RS232

  • Manufactured by: Galil Motion Control

Quick Overview

The RIO-471x0 is a compact PLC with Ethernet that is smart, easy-to-use and cost-effective. The RIO contains a fast RISC processor for handling I/O logic and is programmed using Galil's intuitive command language or using Galil's Ladder Interface software.



Each RIO unit is self-contained with numerous analog and..

Contact us

Description

The RIO-471x0 is a compact PLC with Ethernet that is smart, easy-to-use and cost-effective. The RIO contains a fast RISC processor for handling I/O logic and is programmed using Galil's intuitive command language or using Galil's Ladder Interface software.



Each RIO unit is self-contained with numerous analog and digital I/O including: 8 analog inputs, 8 analog outputs, 16 optically isolated inputs, 8 highpower isolated outputs and 8 low-power isolated outputs. The RIO-47100 provides 0-5V analog I/O and the RIO-47120 provides configurable +/-10V, +/-5V, 0-5V, or 0-10V analog I/O. The RIO can be configured to operate as a Modbus TCP master or slave, and multiple RIO units can be distributed on an Ethernet network allowing I/O expansion.



Product Features


  • Programmable logic controller (PLC) that is smart, compact and cost-effective
  • (1) 10/100 Base-T Ethernet port (2 with RIO-47142) and (1) RS232 port up to 115/19.2 kbaud.
  • ModBus/TCP master or slave
  • Lots of I/O
  • Analog PID Process Control Loops
  • Multitasking for concurrent execution of up to four application programs.
  • LED indicators for all digital I/O points
  • Contains RISC processor and memory for programming I/O events
  • Easy-to-use, 2-letter Galil programming language
  • Expanded variables, memory and control loops for RIO-471x2 and RIO-472x2
  • Web interface and email capability for sending messages
  • Powered by Power-Over-Ethernet (PoE) or external 18-36V DC input
  • Small Size:
    RIO-471xx: 3.88" x 4.26" x 1.30"; Metal Enclosure
    RIO-472xx: 7.19" x 3.52" with DIN tray;screw terminals
    RIO-473xx: 10.8" x 4.7" with DIN tray;screw terminals
  • D-type connectors for RIO-471xx. Screw terminals for RIO-472xx and RIO-473xx
  • Interface to RTD or Thermocouple temperature sensors with SCB-48x06
  • Galil's Ladder Interface Software is available for converting Relay Ladder Logic programs into deterministic code
  • Custom hardware and firmware options available





Datasheet PDF
Datasheet  - 0.5 Meg
