EtherCAT Master Multi-Axis Motion Controllers - 2 to 32 axes

  • Manufactured by: Galil Motion Control

Quick Overview

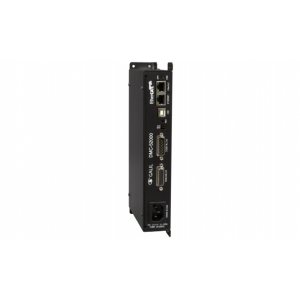

The DMC-52xx0 EtherCAT Master is Galil Motion Control's first 32 axis motion controller. It is a pure EtherCAT controller capable of controlling up to 32 drives and 2 IO modules on one EtherCAT Network in a small, space efficient package.



The DMC-52xx0 makes configuration and programming easy with just a handful of..

Contact us

Description

The DMC-52xx0 EtherCAT Master is Galil Motion Control's first 32 axis motion controller. It is a pure EtherCAT controller capable of controlling up to 32 drives and 2 IO modules on one EtherCAT Network in a small, space efficient package.



The DMC-52xx0 makes configuration and programming easy with just a handful of EtherCAT configuration commands and Galil’s intuitive, two-letter programming language. The DMC-52xx0 is offered in 2, 4, 8, 16, and 32 axis formats. Coordinated moves can be done within banks of 8 allowing for minimal changes to Galil’s programming language. Galil supports a variety of EtherCAT drives to accommodate most applications. The DMC-52xx0 operates in Cyclic Synchronous Position mode (CSP). In this mode the servo control loop is closed on the EtherCAT drive while the Galil sends motion profile data at a 1 kHz rate. The DMC-52xx0 features 8 uncommitted opto-isolated inputs and 8 uncommitted opto-isolated high power outputs. It also includes 8 uncommitted analog inputs and 8 uncommitted analog outputs. One 100 Mbps Ethernet port and one USB (serial) port are provided for communication with a host PC or external devices.



Supported Drives:
- Galil's EDD-3701x
- AMC DZEANTU
- Copley XenusPLUS P
- Delta Electronics ASD-A2
​- Estun ProNet Servo Drive
- LS Mecapion L7NH
- LS Mecapion Pegasus
- Mitsubishi MR-J4*
- Panasonic Minas A5B
- Panasonic Minas A6B
- Parker P Series
- Sanyo-Denki SANMOTION R*
- Yaskawa Sigma-5
- Yaskawa Sigma-7

* Contact us



pdf_logo
Datasheet - PDF 2.0 Meg
