DMC-41x3 - Ethernet/RS232 Econo Motion Controllers, 1-8 axes

Description

The DMC-41x3 motion controller is Galil's latest generation Econo motor controller. Compared with the DMC-21x3 Econo controller, the DMC-41x3 offers the following enhancements: 100BASE-T Ethernet, aux RS232 port, USB port, uncommitted analog inputs, accepts 15 MHz encoder frequencies, more program memory, and faster sample frequencies.The DMC-41x3 also accommodates the same stepper and servo motor drives used in the DMC-40x0 Accelera series and allows two 4-axis 500 W drives to be installed in the 8-axis controller package.

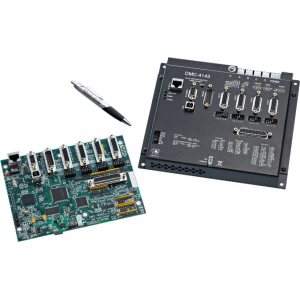

The DMC-41x3 is available as a box-level or card-level motion controller. The unit operates stand-alone or interfaces to a PC with Ethernet 10/100BASE-T, or USB. It includes optically isolated I/O in addition to analog inputs and outputs. The DMC-41x3 controller and drive unit accepts power from a single 20-80 VDC source. The DMC-41x3 is available in one through eight axis formats, and each axis is user-configurable for stepper or servo motor operation. Standard programming features include PID compensation with velocity and acceleration feedforward, multitasking for simultaneously running up to eight programs, and I/O processing for synchronizing motion with external events.

Product Features

• Ethernet 10/100Base-T port; (1) USB - main; (1) RS-232 - aux
• Optional plug-in amplifier boards for driving stepper, brush, or brushless servo motors up to 750 Watts
• User configurable for stepper or servo. Optional firmware for piezo-ceramic motors. Configurable for sinusoidal commutation.
• Accepts up to 15MHz encoder frequencies for servos and outputs up to 3MHz for steppers.
• PID compensation with velocity and acceleration feedforward, integration limits, notch filter and low-pass filter
• Modes of motion include jogging, point-to-point positioning, contouring, PVT, linear and circular interpolation, electronic gearing and ECAM. Ellipse scaling, slow-down around corners, infinite segment feed and feedrate override
• Over 200 English-like commands including conditional statements and event triggers
• Non-volatile memory for programs, variables and arrays. Multitasking for concurrent execution of up to eight programs
• Optically isolated home input and forward and reverse end-of-travel limits for every axis
• Uncommitted, isolated inputs and isolated outputs
  1- through 4-axis models: 8 inputs and 8 outputs (4mA default; 25mA or 500mA option)
  5- through 8-axis models: 16 inputs and 16 outputs (4mA default; 25mA or 500mA option)
• High speed position latch for each axis and output compare
• 8 uncommitted analog inputs
• Dual encoder inputs for each servo axis
• Accepts single 20-80 VDC input
• Available with internal stepper and servo drives. Or, connect to external drives of any power range
• Available as card-level or with metal enclosure
• Communication drivers for Windows, Mac OSX, and Linux
• Custom hardware and firmware options available

Full specification (PDF File - 0.3 Meg)
