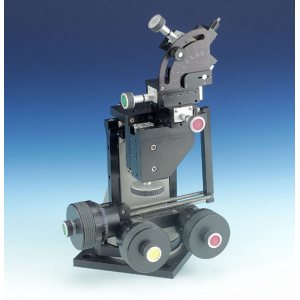

Micromanipulator Huxley style

  • Manufactured by: Siskiyou

Quick Overview

High resolution flexure design

Low drift, ultra-high stability

5 axis coarse and 3 axis fine adjustment

The time-tested MX310 Huxley-style micromanipulator is ideal for introductory level research and training course use. This stable flexure design has proven itself over the years, and has been improved with the add..

Contact us

Description

High resolution flexure design

Low drift, ultra-high stability

5 axis coarse and 3 axis fine adjustment

The time-tested MX310 Huxley-style micromanipulator is ideal for introductory level research and training course use. This stable flexure design has proven itself over the years, and has been improved with the addition of 100TPI adjustment screws for 0.1 µm fine resolution. For coarse positioning we have incorporated our MX110 stage. The spring loaded lead screw design in the MX110 ensures drift-free operation.

Coarse adjustment of the MX310 is achieved with our 5-axis MX110 manipulator mounted on the top of the flexure. For added positioning versatility, the top stage tilts at any angle from 0° to 90°, and includes 22-mm of linear travel along the probe axis.

The base of the MX310 is equipped with a lockable rotation stage with an adjustable stop. The adjustable stop allows for simple probe/pipette replacement by rotating the entire MX310 away from the microscope and returning it to the pre-aligned position.

Performance specifications:

Coarse travel: 22mm/axis.
Coarse resolution: 10µm.
Fine Travel: 2mm/axis.
Fine resolution: 1µm.
Probe angle adjustment: 0° - 90°.
