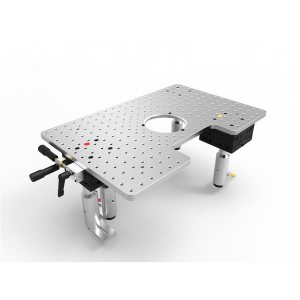

Microscope Translating Platform

  • Manufactured by: Siskiyou

Quick Overview

LSM Manual XY Translating Platform, with manual or motorized drives, are avail­able for most upright and inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you’re still recording from your original patch site. They’re avail­able exclusively with crossed r..

Description

LSM Manual XY Translating Platform, with manual or motorized drives, are avail­able for most upright and inverted microscopes. They allow you to move the platform instead of the microscope to find a new recording location while you’re still recording from your original patch site. They’re avail­able exclusively with crossed roller stages for stiction-free repositioning – you won’t jolt your sample when you make adjustments. The inherent stability of our construction maintains the focal plane of the microscope, while sensitive experiments aren’t disturbed.



Support platforms are color coded to match the top platform, to ensure that the correct support plat­form is matched with it’s support location. The platforms are machined from stress-free aluminum tooling plate, which provides the flattest plat­forms available.



Product Features
40 and 80 pitch adjustment screws
Available for upright and inverted microscopes
Full crossed roller bearings
Lockable travel (manual versions)



Performance Specifications


Load, maximum centered 100 lb
Travel
X axis
1.0 inch / 25mm
Y axis
1.0 inch / 25mm
Controlable motion, minimum
40 pitch screw
10 μm
80 pitch screw
Submicron
