Confocal Translators MXZP / MXOP

  • Manufactured by: Siskiyou

Quick Overview

The MXZ series translators are designed for Confocal Microscope systems.

The MXZP platform system can be custom tailored to suit the needs of the end user. The platform configuration that is pictured is just one of many that have been produced.

The MXOP translator is designed for Olympus Confocal Microscope systems, it tran..

Contact us

Description

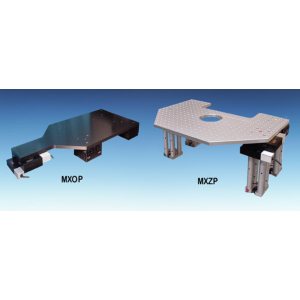

The MXZ series translators are designed for Confocal Microscope systems.

The MXZP platform system can be custom tailored to suit the needs of the end user. The platform configuration that is pictured is just one of many that have been produced.

The MXOP translator is designed for Olympus Confocal Microscope systems, it translates the entire Microscope system.

Both systems are supported by our 100cr series stages (crossed roller). They are available in manual or motorized versions. A full 25mm of travel is provided on both models The manual versions, can be fitted with either 20, 40, 80, or 100 TPI adjustment screws with resolution from 20 µm down to 5 µm, respectively. Please specify which pitch of adjustment screw you require when ordering. Replace -xx in the Model Number with the desired thread.

Motorized versions can be controlled with any e series and MC2000 controllers. Our controllers drive the stage through a closed loop interface between the controller and the motor encoder. The closed loop connection ensures 0.2 µm and 0.1 µm resolution, respectively. The encoder coupling also enables the use of the DR1000 digital readout for repeated or relative positioning requirements. All cables are shielded to ensure noise-free operation during sensitive electrophysiology experiments.

Please include the name of the manufacturer and complete model number of your microscope when ordering.
