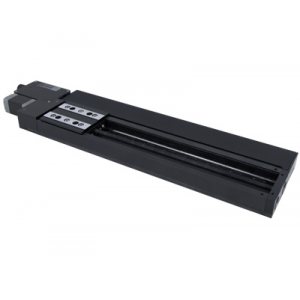

X-LRM-DE Series - motorized linear stages

  • Manufactured by: Zaber Technologies

Quick Overview

Miniature, steel, motorized linear stages with built-in controllers and linear encoders

Zaber's X-LRM-DE series products are motorized linear stages with integrated controllers. An integrated linear encoder combined with stage calibration provides high accuracy positioning over the full travel of the device. The ..

Contact us

Description

Miniature, steel, motorized linear stages with built-in controllers and linear encoders

Zaber's X-LRM-DE series products are motorized linear stages with integrated controllers. An integrated linear encoder combined with stage calibration provides high accuracy positioning over the full travel of the device. The X-LRM-DE's hardened steel construction and recirculating ball bearing guide provide exceptional rigidity and thermal stability. High stiffness makes this stage ideal for multi-axis configurations or applications where excellent stability under cantilever loads is required.



They are stand-alone units requiring only a standard 24-48 V power supply. A knob at the end of the unit permits manual control - press and hold to switch between velocity mode and position mode, turn to move the stage, and press to stop.



The stages connect to the USB 2.0 or RS-232 port of any computer and can be chained with several units per chain. They can be chained with any other Zaber products. Convenient locking, 4-pin, M8 connectors on the unit allow for easy and secure connection between products. The chain also shares power, so multiple X-Series products can use a single power supply.



  • Hardened steel construction and recirculating ball bearing guide provide exceptional stiffness and thermal stability
  • 100, 150, 200 mm travel
  • Integrated linear encoders with 50 nm resolution provide slip/stall detection and position correction
  • 15 µm accuracy over 200 mm
  • 50 kg load capacity
  • Built-in controller, daisy chains with other Zaber products
