Rotation Stages Motorized - RSB Series

  • Manufactured by: Zaber Technologies

Quick Overview

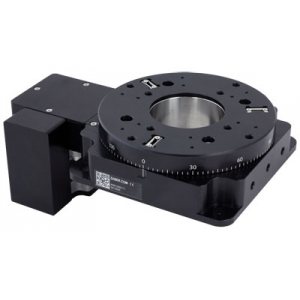

Zaber's RSB motorized rotation stages have a 120 mm table diameter and a 50.8 mm (2 inch) aperture. They feature a compact footprint, low profile, and a load capability of up to 20 kg. With a maximum speed of 300 rpm, these rotation stages are ideal for the rapid positioning of light loads to within a fraction of a degree.

The..

Contact us

Description

Zaber's RSB motorized rotation stages have a 120 mm table diameter and a 50.8 mm (2 inch) aperture. They feature a compact footprint, low profile, and a load capability of up to 20 kg. With a maximum speed of 300 rpm, these rotation stages are ideal for the rapid positioning of light loads to within a fraction of a degree.

There are two motor configurations available: up and down. Motor up configurations allow flush mounting of the device to a flat surface, and motor down configurations allow for full 360° movement of loads that extend past the edge of the stage top.



  • Continuous 360° rotation stage

  • Speeds up to 300 rpm

  • 50.8 mm aperture

  • Multiple motor configurations



Specification Value Alternate Unit
Microstep Size (Default Resolution) 0.0056 degrees 97.737 urad
Integrated Controller No
Recommended Controller X-MCB1 (48 V) Recommended
Range 360 degrees
Accuracy (unidirectional) 0.19 degrees 3.315500 mrad
Repeatability < 0.02 degrees < 0.349 mrad
Backlash < 0.19 degrees < 3.316 mrad
Maximum Speed 1800 deg/s 300.0 rpm
Minimum Speed 0.026 deg/s 453.778 urad/s
Encoder Type None
Maximum Continuous Torque 140 N-cm 198.3 oz-in
Maximum Centered Load 196 N 44.0 lb
Stage Diameter 120 mm 4.724 "
Motor Type Stepper (2 phase)
Motor Rated Current 2100 mA/phase
Motor Winding Resistance 2.9 ohms/phase
Inductance 7.2 mH/phase
Motor Connection D-sub 15
Mechanical Drive System Synchronous belt
Limit or Home Sensing Magnetic home sensor
RoHS Compliant Yes
CE Compliant Yes
Weight 2.00 kg
