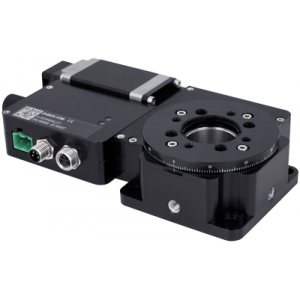

Rotary Stages with Built-in Controllers and Motor Encoder

  • Manufactured by: Zaber Technologies

Quick Overview



Zaber's X-RSW-E Series products are computer controlled motorized rotary stages with integrated controllers and motor encoders. They are stand-alone units requiring only a standard 24-48 V power supply.



Built-in motor encoders allow for closed-loop operation and slip/stall recovery features. An ind..

Contact us

Description



Zaber's X-RSW-E Series products are computer controlled motorized rotary stages with integrated controllers and motor encoders. They are stand-alone units requiring only a standard 24-48 V power supply.



Built-in motor encoders allow for closed-loop operation and slip/stall recovery features. An indexed knob provides smooth manual control at variable speeds in both directions for versatile operation even without a computer. Press and hold to switch between velocity mode and distance mode, turn to move the stage, and press to stop.



The stages connect to the USB 2.0 or RS-232 port of any computer and can be chained with several units per chain. They can also be chained with any other Zaber products. Convenient locking, 4-pin, M8 connectors on the unit allow for easy and secure connection between products. The chain also shares power, so multiple X-Series products can use a single power supply.


Worm gear driven for continuous rotation
Two lens holders allow for use as a polarizer mount
Speed up to 75 rpm and torque up to 2.25 N-m
Encoder position feedback with slip/stall detection and automatic recovery
Built-in controller; daisy-chains with other Zaber products
Multiple X-Series products in a daisy-chain can share a single power supply

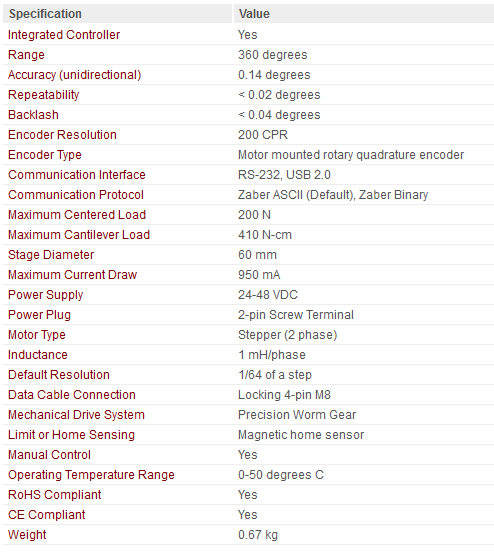

specifiacation rotary stage

Ask a question about the Rotary Stages with Built-in Controllers and Motor Encoder





Manufacturer Informations

Zaber Technologies
Manufacturer Website

    Zaber was founded in 1997, when precision linear actuators all used DC motors with gearboxes and encoders requiring bulky controllers.
    Zaber resolved this by integrating the motor, controller, driver, and mechanics into a single device with a small form factor.
