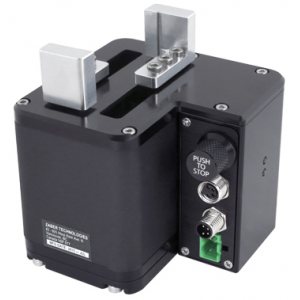

Parallel Grippers with Built-in Motor Encoders and Controller

  • Manufactured by: Zaber Technologies

Quick Overview

Zaber's X-GLP-E Series of products are computer-controlled electric grippers with motor-mounted encoders. They are stand-alone units requiring only a standard 24 V power supply. The motor encoder allows for closed-loop operation, detecting when the fingers have gripped an object and providing feedback about the object's size.

&..

Contact us

Description

Zaber's X-GLP-E Series of products are computer-controlled electric grippers with motor-mounted encoders. They are stand-alone units requiring only a standard 24 V power supply. The motor encoder allows for closed-loop operation, detecting when the fingers have gripped an object and providing feedback about the object's size.



An indexed knob provides smooth manual control at variable speeds in both directions for versatile operation even without a computer. Press and hold to switch between velocity mode and distance mode, turn to move the gripper fingers, and press to stop. Gripper devices connect to the USB 2.0 or RS-232 port of any computer and can be chained with several units per chain. They can be chained with any other Zaber products. Convenient locking, 4-pin, M8 connectors on the unit allow for easy and secure connection. The chain also shares power, so multiple X-Series products can use a single power supply.


    40 mm travel
    Grips and measures different sized objects without programming
    Position feedback from motor encoder
    Maintains grip even if power is lost
    Built-in controller
    Daisy-chains with other X-Series products to share a single power supply
    Includes removable finger blanks

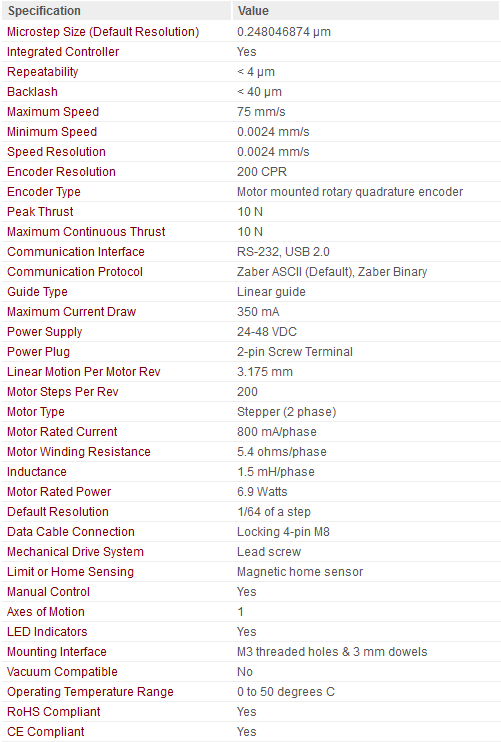

gripper specification

Ask a question about the Parallel Grippers with Built-in Motor Encoders and Controller





Manufacturer Informations

Zaber Technologies
Manufacturer Website

    Zaber was founded in 1997, when precision linear actuators all used DC motors with gearboxes and encoders requiring bulky controllers.
    Zaber resolved this by integrating the motor, controller, driver, and mechanics into a single device with a small form factor.
