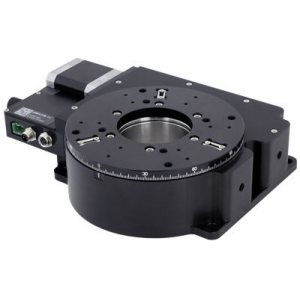

Motorized Rotation Stages with Built-in Controllers

  • Manufactured by: Zaber Technologies

Quick Overview

Zaber's X-RST Series products are motorized rotation stages with built-in controllers. Rated for a 50 kg centered load capacity and 10 N-m of torque, they are ideal for high load, angular positioning applications.



They are stand-alone units requiring only a standard 24-48 V power supply. A manual knob at the end of..

Contact us

Description

Zaber's X-RST Series products are motorized rotation stages with built-in controllers. Rated for a 50 kg centered load capacity and 10 N-m of torque, they are ideal for high load, angular positioning applications.



They are stand-alone units requiring only a standard 24-48 V power supply. A manual knob at the end of the unit permits manual control - press and hold to switch between velocity mode and position mode, turn to move the stage, and press to stop.



The stages connect to the USB 2.0 or RS-232 port of any computer and can be chained with several units per chain. They can be chained with any other X-Series, A-Series, or T-Series products. Convenient locking, 4-pin, M8 connectors on the unit allow for easy and secure connection. The chain also shares power, so multiple X-Series products can use a single power supply.


        50.8 mm (2 inch) aperture with kinematic mounting options for repeatability of assembly

        50 kg centered load capacity

        Speed up to 24 deg/s; torque up to 10 N-m

        Built-in controller; daisy-chains with other X-Series, A-Series, and T-Series products

        Multiple X-Series products in a daisy-chain can share a single power supply





Specification

Value

Alternate Unit

Microstep Size (Default Resolution)

0.00015625 degrees

2.727 urad

Integrated Controller

Yes



Range

360 degrees



Accuracy (unidirectional)

0.16 degrees

2.792000 mrad

Repeatability

< 0.005 degrees

< 0.087 mrad

Backlash

< 0.05 degrees

< 0.873 mrad

Maximum Speed

24 deg/s

4.0 rpm

Minimum Speed

0.000095 deg/s

1.658 urad/s

Encoder Type

None



Communication Interface

RS-232, USB 2.0



Communication Protocol

Zaber ASCII, Zaber Binary



Maximum Continuous Torque

1000 N-cm

1,416.1 oz-in

Maximum Centered Load

500 N

112.1 lb

Maximum Cantilever Load

2000 N-cm

2,832.2 oz-in

Stage Diameter

120 mm

4.724 "

Maximum Current Draw

1100 mA



Power Supply

24-48 VDC



Power Plug

2-pin Screw Terminal



Motor Steps Per Rev

200



Motor Type

Stepper (2 phase)



Inductance

6.6 mH/phase



Maximum Angular Momentum

0.4 kg-m^2/s



Default Resolution

1/64 of a step



Data Cable Connection

Locking 4-pin M8



Mechanical Drive System

Precision Worm Gear



Limit or Home Sensing

Magnetic home sensor



Manual Control

Yes



Operating Temperature Range

0-50 degrees C



RoHS Compliant

Yes



CE Compliant

Yes



Weight

2.4 kg
