Miniature Motorized Linear Stages with Built-in Controller

  • Manufactured by: Zaber Technologies

Quick Overview

The X-LSM is a new and improved miniature motorized linear stage with built-in controller.



Zaber's X-LSM Series devices are computer-controlled, motorized linear stages with high thrust and speed capabilities and a compact size. They are stand-alone units requiring only a standard 24 V power supply. An optional ind..

Contact us

Description

The X-LSM is a new and improved miniature motorized linear stage with built-in controller.



Zaber's X-LSM Series devices are computer-controlled, motorized linear stages with high thrust and speed capabilities and a compact size. They are stand-alone units requiring only a standard 24 V power supply. An optional indexed knob provides convenient manual control for versatile operation even without a computer.


    25, 50, 100, 150 and 200 mm travel
    10 kg load capacity
    Up to 104 mm/s speed and up to 55 N thrust
    Built-in controller; daisy-chains with other Zaber products


These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units.



At only 21 mm high, these miniature stages are excellent for applications where a small profile is required. The X-LSM's innovative design allows speeds up to 104 mm/s and loads up to 10 kg. Like all of Zaber's products, the X-LSM Series is designed to be 'plug and play' and very easy to set up and operate. If you are considering a multi-axis system, in the XY configuration, these stages make excellent microscope stages. Adding a X-JOY3 joystick controller allows manual control of both X and Y or XYZ axes from a single interface as well as allowing microscope stage positions to be saved and recalled at the touch of a button.

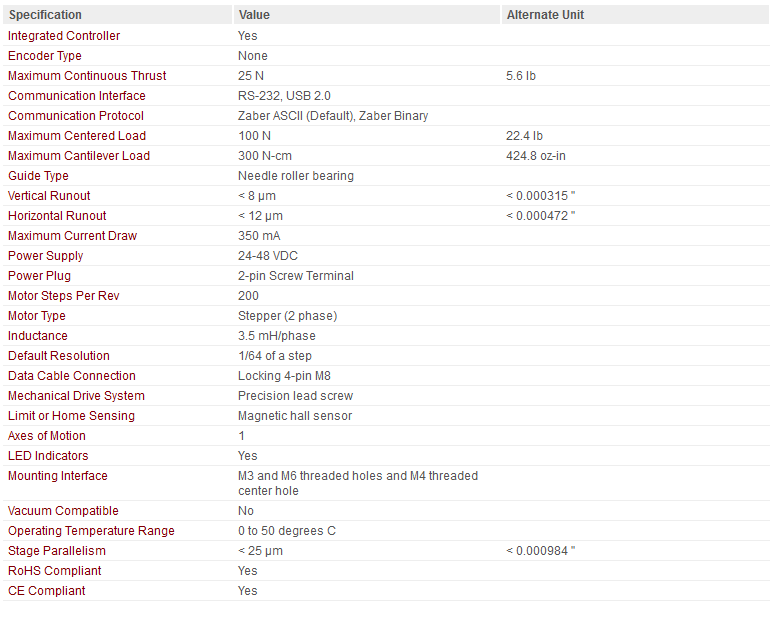

specification - linear stage

Ask a question about the Miniature Motorized Linear Stages with Built-in Controller





Manufacturer Informations

Zaber Technologies
Manufacturer Website

    Zaber was founded in 1997, when precision linear actuators all used DC motors with gearboxes and encoders requiring bulky controllers.
    Zaber resolved this by integrating the motor, controller, driver, and mechanics into a single device with a small form factor.
