Linear Stage A-LAR-E

  • Manufactured by: Zaber Technologies

Quick Overview



Zaber's A-LAR-E Series products are computer controlled, lead screw driven, motorized l..

Description

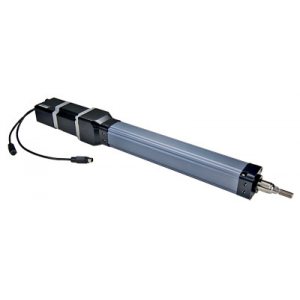

Zaber's A-LAR-E Series products are computer controlled, lead screw driven, motorized linear actuators (electric cylinders) with integrated feedback encoders. They are stand-alone units requiring only a standard 48 V power supply. A built-in encoder allows closed-loop operation and slip/stall recovery features. A manual knob at the end of the unit permits manual control - press and hold to switch between velocity mode and distance mode, turn to move the actuator, and press to stop.

  • 200 or 300 mm travel
  • 55 kg maximum force
  • Up to 40 mm/s speed
  • Lead screw driven
  • Encoder position feedback with slip/stall detection and automatic recovery
  • Built-in controller; daisy chains with other A-Series and T-Series products



The actuators connect to the RS-232 port of any computer and can be chained with up to 254 units per chain. They can also be chained with any other A-Series or T-Series products. Convenient 6-pin mini din cables on the unit allow for direct interconnection between units in close proximity. For longer distances, standard cable extension can be used.

Follow the links below for more details, to see part numbers, to generate a quote, or to place an online order.



Products

Description

Typical Lead Time

Documents

A-LAR200ALC-E01

Motorized Linear Actuator, integrated encoder, 200 mm travel, fine resolution, low speed

2 Weeks after Mar. 1

Specs and features

A-LAR300ALC-E01

Motorized Linear Actuator, integrated encoder, 300 mm travel, fine resolution, low speed

2 Weeks after Mar. 1

Specs and features

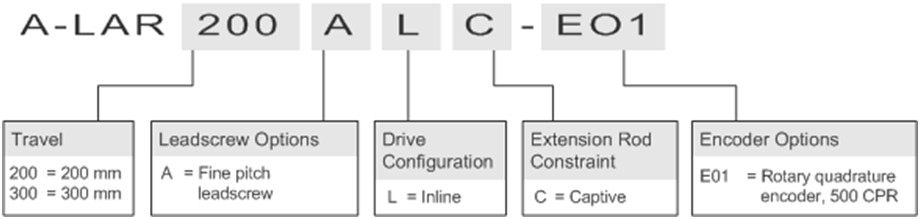

Part Numbering Scheme

Ask a question about the Linear Stage A-LAR-E





Manufacturer Informations

Zaber Technologies

    Zaber was founded in 1997, when precision linear actuators all used DC motors with gearboxes and encoders requiring bulky controllers.
    Zaber resolved this by integrating the motor, controller, driver, and mechanics into a single device with a small form factor.
