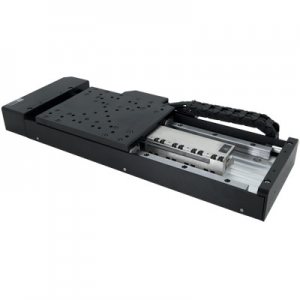

Linear motor stages with built-in control

  • Manufactured by: Zaber Technologies

Quick Overview

Zaber's X-LDQ-AE Series devices are computer-controlled, motorized linear motor stages with high precision and speed capabilities. They are stand-alone units requiring only a standard 48 V power supply. The built-in controller and linear encoder allows pre-tuned closed-loop servo positioning with adjustable tuning parameters. An optional ind..

Contact us

Description

Zaber's X-LDQ-AE Series devices are computer-controlled, motorized linear motor stages with high precision and speed capabilities. They are stand-alone units requiring only a standard 48 V power supply. The built-in controller and linear encoder allows pre-tuned closed-loop servo positioning with adjustable tuning parameters. An optional indexed knob provides convenient manual control for versatile operation even without a computer. These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products.



The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units. The X-LDQ-AE's innovative design allows speeds up to 1.5 m/s and minimum incremental move of 50 nm. Like all of Zaber's products, the X-LDQ-AE Series is designed to be 'plug and play' and very easy to set up and operate.



Zaber's positioners with built-in controllers, stand-alone controllers, and joysticks are divided into three series: the T-Series, the A-Series, and the X-Series.



Specifications


- 75, 150, 300, 450, 600 and 1000 mm travel
- Minimum incremental move of 50 nm
- Up to 1.5 m/s speed and up to 19.62 m/s2 acceleration
- Up to 2.5 µm accuracy over 1000 mm travel
- Zero backlash
- Built-in controller; daisy-chains with other Zaber products
- Integrated linear encoder provides high accuracy closed loop servo positioning



Ask a question about the Linear motor stages with built-in control





Manufacturer Informations

Zaber Technologies
Manufacturer Website

    Zaber was founded in 1997, when precision linear actuators all used DC motors with gearboxes and encoders requiring bulky controllers.
    Zaber resolved this by integrating the motor, controller, driver, and mechanics into a single device with a small form factor.
