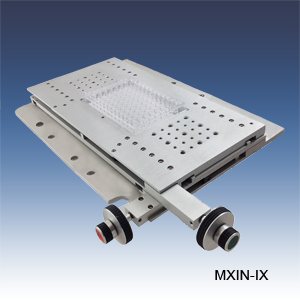

Inverted microscope stage - MXIN-IX

  • Manufactured by: Siskiyou

Quick Overview

Inverted microscope stage incorporates our unique coarse-fine drive system, for rapid travel in x-axis & y-axis, as well as 3mm of high resolution fine control in both axis.  Available to fit current inverted microscopes from major microscope ..

Description

Inverted microscope stage incorporates our unique coarse-fine drive system, for rapid travel in x-axis & y-axis, as well as 3mm of high resolution fine control in both axis.  Available to fit current inverted microscopes from major microscope  manufactures.



Performance Specifications

Travel range

X axis, coarse/fast 104 mm
X axis, fine 3.5 mm
Y axis, coarse/fast 76 mm
Y axis, fine

3.5 mm





Resolution
coarse/fast 100 µm
fine 5 µm




Model

Description

Spec. control

MXIN-IX

Inverted Microscope Stage

maxin-spca

Metric Option - M

for metric assembly features on this product, add -M after Model Number



Ask a question about the Inverted microscope stage - MXIN-IX





Manufacturer Informations

Siskiyou

    Siskiyou provides a diverse range of micromanipulators, microscope sample positioners, motion control systems and modular opto-mechanical building blocks to Life Science and Photonics researchers.
