Laser safety optical tables - laservision

  • Manufactured by: laservision

Quick Overview

The laser protection systems for optical tables (table top system, TTS) are based on the E25 folding wall system from laservision.



Highlights:


- Maximum flexibility of the structure
- Systems can also be combined with one another to a limited extent
- Laser protection pl..

Contact us

Description

The laser protection systems for optical tables (table top system, TTS) are based on the E25 folding wall system from laservision.



Highlights:


- Maximum flexibility of the structure
- Systems can also be combined with one another to a limited extent
- Laser protection plates (M7P06) available in various standard sizes
- Tested and certified according to DIN EN 60825-4
- Custom sizes are possible on request
- Especially suitable for IR lasers
- Also available with materials X1P02 and X1P03 on request



They are divided into 3 subcategories:



Laservision guard1

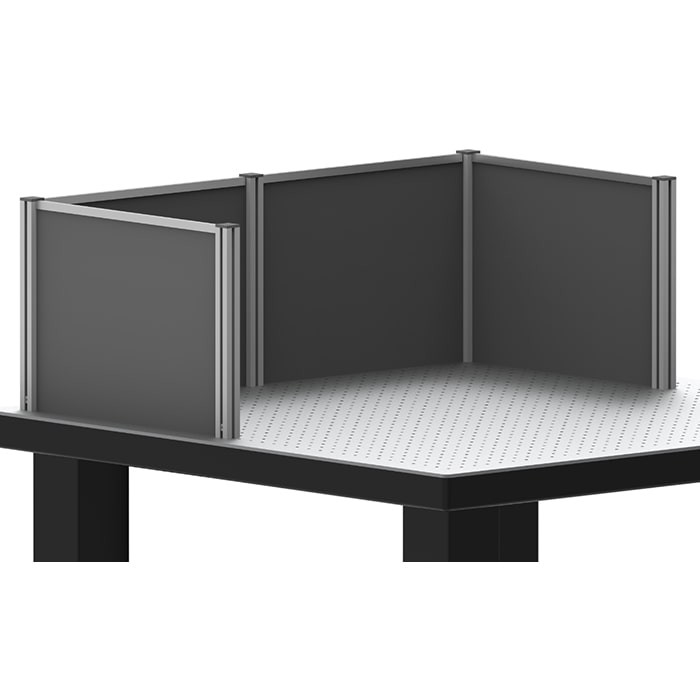

Basic system
A specially developed structure for optical tables (OT) based on the E25 system


- Maximum flexibility of construction
- Systems can also be combined with one another to a limited extent
- Laser protection plates (M7P06) available in various standard sizes
- Tested and certified according to DIN EN 60825-4
- Customer-specific sizes are possible on request
- Especially suitable for IR lasers

laser gurad 2

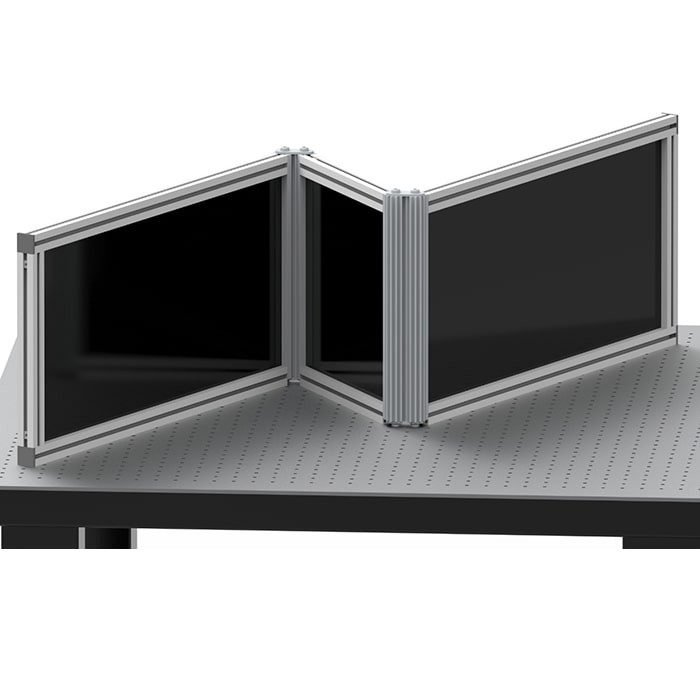

On-The-Table System
A foldable system to be placed on the table


- Maximum flexibility of the structure
- Can be placed on the table
- Increased stability due to magnets (magnetic table surface required)
- Tested and certified according to DIN EN 60825-4
- Can be combined with Basic System and Foldable Edge Systems to a limited extent
- Space-saving storage when not in use

lasergurad3

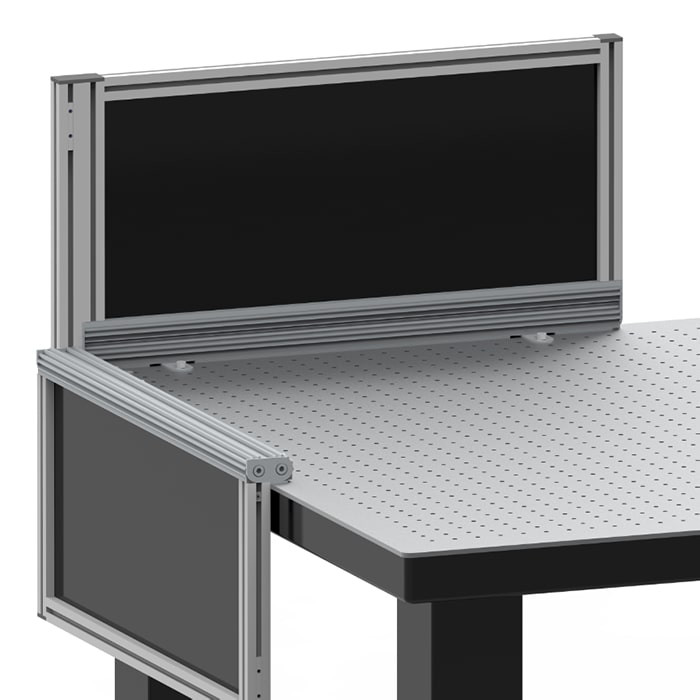

Foldable-Edge System
Allows easy access to the experiment


- Foldable for easy access to the structures on the optical table
- Modules available in 2 standard sizes
- Locking to the system columns and between the modules with magnets
- Construction prevents the modules from falling onto the table
- Tested and certified according to DIN EN 60825-4
- Conditionally combinable with Basic System and On-The-Table System





Each of these variants offers a safe laser protection solution with a flexible design for all conventional OT sizes. The tried and tested BARRIER material M7P06 for the NIR range is available in various standard sizes. It has been tested and certified according to DIN EN 60825-4. Other sizes and materials available upon customer request.



In the basic system, columns are attached to the table with plates inserted in between. In the on-the-table system, foldable screens are placed directly on the table.
