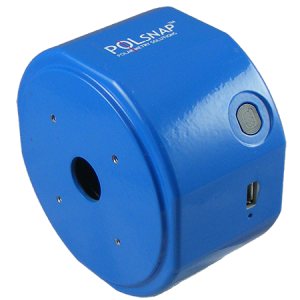

Laser Stokes Polarimeter PolSNAP

  • Manufactured by: Hinds Instruments

Quick Overview

PolSNAP is a compact Stokes Polarimeter from Hinds Instruments; a company with more than 45 years of polarimetry experience.


Data is acquired at the rate of 2000 samples per second for a quick determination of 4 Stokes vectors per second. The optical system, drive electronics and detection electronics are all contained in one c..

Contact us

Description

PolSNAP is a compact Stokes Polarimeter from Hinds Instruments; a company with more than 45 years of polarimetry experience.


Data is acquired at the rate of 2000 samples per second for a quick determination of 4 Stokes vectors per second. The optical system, drive electronics and detection electronics are all contained in one convenient package. It easily fi ts into your optical set up so that you can determine the polarization of your light source or optics, do quality control on your lasers, or determine the polarization maintaining ability of your fi ber optics. This benchtop turnkey system generates all four Stokes parameters and displays them graphically in three different ways. The precision is down to 0.06% and repeatability is to within 1%


Applications:


• Free Space and Fiber Polarimetry
• Degree of Polarization and State of Polarization Measurements
• Optical Component Alignment
• Fiber Optic Polarization Measurements
• Laser Polarization State



Features:


• Internal optical system, drive electronics and detection electronics.
• No additional consoles or electronics.
• Small size - fits in your hand
• Connected via USB
• Fast measurement speed: 4 Stokes vectors per second (2000 samples per second).
• Easy-to-use software - for use with Windows 7 or Windows 10 systems.




pdf_logo
Datasheet - 1.35 Meg

Ask a question about the Laser Stokes Polarimeter PolSNAP





Manufacturer Informations

Hinds Instruments
Manufacturer Website

    Hinds Instruments develops and manufactures polarization measurement instrumentation for research and industry.

    Hinds Instruments build photoelastic modulator-based systems and components that exploit the high sensitivity of PEM polarization analysis technology for a wide variety of applications including birefringence, stokes polarimetry, dichroism, optical rotation and others in research, metrology and on-line environments.
