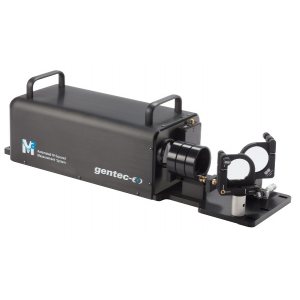

Automated Laser Beam Quality Measurement System - Beamage-M2

  • Manufactured by: Gentec E-O

Quick Overview

Large Apertures


The only M2 system on the market equipped with a complete set of 50mm optics. Also, the sensor is 11.3 x 11.3 mm.


Simple Alignment


Two beam-steering mirrors are included for quick and easy alignment of your laser into the system. The internal ..

Contact us

Description

Large Apertures


The only M2 system on the market equipped with a complete set of 50mm optics. Also, the sensor is 11.3 x 11.3 mm.


Simple Alignment


Two beam-steering mirrors are included for quick and easy alignment of your laser into the system. The internal mirrors are factory-aligned and the pre-set height also simplifies the alignment


Compact


The low-profile ingenious mechanics make it easy to fit the device on any optical table


ISO Compliant


The calculations are fully compliant to the ISO 11146 and 13694 standards


Fast Acquisition


Make a complete, ISO-compliant measurement in only 20 seconds with the ROI feature, and in less than a minute with full-frame acquisition


Flexible & Intuitive Software


In the easy-to-navigate software, both automatic and manual settings are available, so data points can be added or removed even after an automatic scan is completed





pdf_logo
Datasheet - 0.25 Meg

Ask a question about the Automated Laser Beam Quality Measurement System - Beamage-M2





Manufacturer Informations

Gentec E-O

    With a 50 year track record of innovation and providing quality solutions for laser power and energy measurement applications from the factory to the hospital and laboratory, Gentec-EO stands ready to serve you now and in the future.
