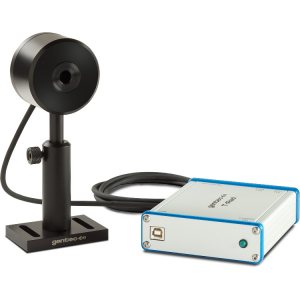

THZ-B Serie - Terahertz measurement by computer

  • Manufactured by: Gentec E-O

Quick Overview

Features

Relative Measurements from 0.1 to 30 THz
Broadband, room temperature operation, easier to use and less expensive than a Golay cell



Wide Dynamic Range from nW to mW
with state of the art pyroelectric sensors, measure down to 50 nW with 1 nW resolutio..

Contact us

Description

Features

Relative Measurements from 0.1 to 30 THz
Broadband, room temperature operation, easier to use and less expensive than a Golay cell



Wide Dynamic Range from nW to mW
with state of the art pyroelectric sensors, measure down to 50 nW with 1 nW resolution



Use with T-Rad THz Module or T-Rad-Analog Analog Power Module
Each head can be connected to an oscilloscope using the analog power module (T-Rad-Analog) or directly to a PC with the digital power module (T-Rad)

Several Sensor Sizes Available
Choice of 2.5mm, 5 mm and 9 mm diameter



Calibrated at 0.63 µm
THZ-B detectors are calibrated at a single wavelength (0.63 µm) and include typical wavelength correction data from 0.25 to 440 µm. They are used for relative measurements outside that range



SDC-500 Optical Chopper
All THZ-B detectors require the use of an optical chopper, like our SDC-500, to sync the signal at either 5 Hz (DA models) or 25 Hz (DZ models)

User-Friendly Software with Many Features (When used with T-Rad-USB)


  • Strip Chart, Statistics and Tuning Needle displays
  • Controls and Power display always visible
  • Tuning Needle display includes min/max indicators
  • Data Logging for long term testing








Datasheet (PDF - 0.5 Meg)
