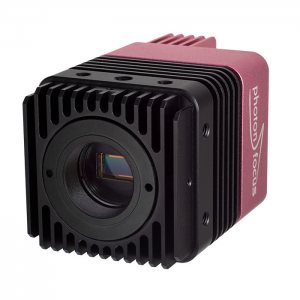

Hyperspectral camera MV4 - 16 bands - 470 to 630nm - 340 fps

  • Manufactured by: Photonfocus

Quick Overview

The CMOS camera series MV4 was developed for demanding applications in machine vision, motion analysis and optical metrology. The used IMEC CMOS image sensor is optimized for very high frame rates and high sensitivity. The camera is also equipped with a wide range of features, for example to reduce the amount of data to betransmitted.

..

Contact us

Description

The CMOS camera series MV4 was developed for demanding applications in machine vision, motion analysis and optical metrology. The used IMEC CMOS image sensor is optimized for very high frame rates and high sensitivity. The camera is also equipped with a wide range of features, for example to reduce the amount of data to betransmitted.





IMEC CMV2K-SM4X4-VIS CMOS image sensor

- 16 pass bands from 470nm to 630nm
- Up to 340fps @ full resolution

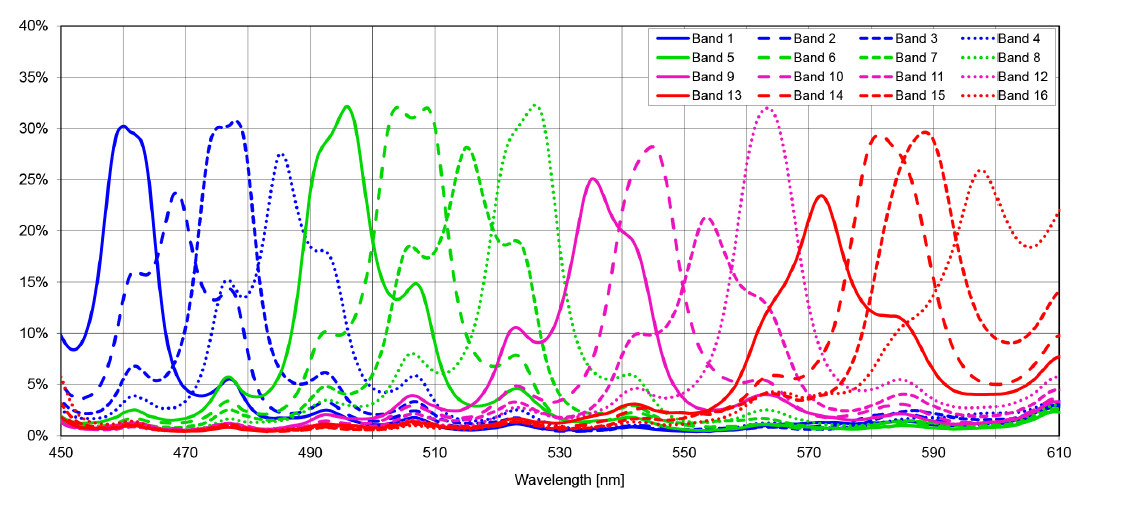

Quantum Efficiency Image Sensor

hyperspectral quantum



Camera Specifications


Interface: 10GigE
Frame rate: 340fps
Pixel clock: N/A
Camera taps: N/A
Greyscale resolution: 8, 10 and 12 Bit
Fixed pattern noise (FPN) < 1DN RMS @ 8Bit
Exposure time range: 6μs - 346ms
Analog gain: yes
Digital gain: 0.1 to 15.99 (FineGain)
Trigger Modes: Free running (non triggered), external Trigger, SWTrigger, Encoder
Operation temperature / moisture 0°C ... + 50°C / 20% ... 80%
Storage temperature / moisture: -25°C ... 60°C / 20% ... 95%
Power supply: PoE (IEEE 802.3bt standard Class 4) or Wall adapter (+12VDC (-10%) ...+24VDC (+10%))
Power consumption: < 12.5W
Lens mount: C-Mount
I/O Inputs: 4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
I/O Outputs: 3x Isolated outputs (2x open drain, 1x TTL high-speed)
Dimensions:: 59 x 59 x 104.2 mm3
Mass: 470g
Connector I/O (Power): 17 pin M12
Connector Interface: X-coded M12
Conformity: CE / RoHS / WEEE
IP Code: IP40

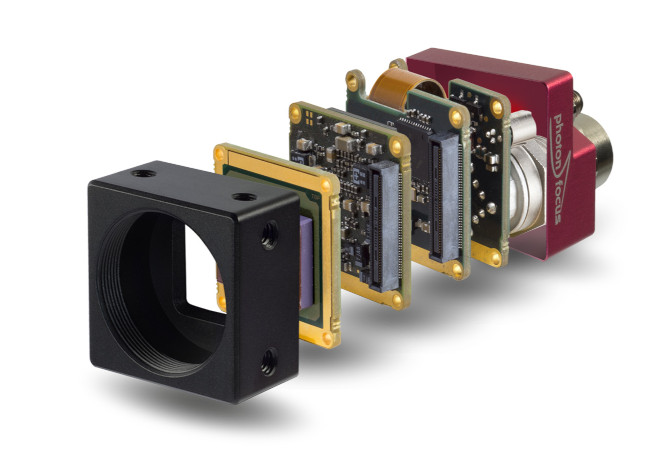

Modular design

modular design - hyperspectral camera

Photonfocus' unique modular camera system allows for quick integration of both proven and new technologies according to your application requirements.
