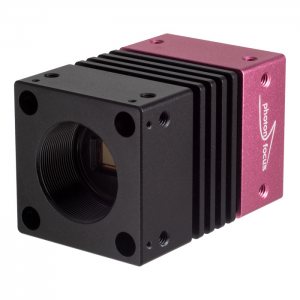

Hyperspectral camera MV2 - 25 bands - 665 to 975nm - 50 fps

  • Manufactured by: Photonfocus

Quick Overview

Photonfocus has developed outstanding solutions for numerous fields of application in order to meet the growing demand for imaging applications in invisible light spectra. The photonSPECTRAL platform offers highly sensitive cameras with wavelengths ranging from deep UV to short-wavelength infrared light (SWIR), as well as innovative systems for ..

Contact us

Description

Photonfocus has developed outstanding solutions for numerous fields of application in order to meet the growing demand for imaging applications in invisible light spectra. The photonSPECTRAL platform offers highly sensitive cameras with wavelengths ranging from deep UV to short-wavelength infrared light (SWIR), as well as innovative systems for the hyperspectral range.



IMEC CMV2K-SM5x5-NIR CMOS image sensor

- 25 pass bands from 665nm to 975nm
- Up to 50fps @ full resolution



Quantum Efficiency Image Sensor

hyperspectral quantum IR



Camera Specifications


Interface: GigE
Frame rate: 50fps
Pixel clock: N/A
Camera taps: N/A
Greyscale resolution: 8Bit / 10Bit
Fixed pattern noise (FPN) < 1DN RMS @ 8Bit
Exposure time range: 7μs - 419ms
Analog gain: yes
Digital gain: 0.1 to 15.99 (FineGain)
Trigger Modes: Free running (non triggered), external Trigger, SWTrigger
Operation temperature / moisture 0°C ... + 50°C / 20% ... 80%
Storage temperature / moisture: -25°C ... 60°C / 20% ... 95%
Power supply: +12VDC (-10%) ... +24VDC (+10%)
Power consumption: < 4.2W
Lens mount: C-Mount
I/O Inputs: 2x Opto-isolated
I/O Outputs: 1x Opto-isolated
Dimensions:: 40 x 40 x 62.2mm³
Mass: 160g
Connector I/O (Power): Binder 4-pin (I/O); Binder 3-pin (Power); mating plug M5 x 0.5, Series 707
Connector Interface: RJ-45
Conformity: CE / RoHS / WEEE
IP Code: IP40



Modular design

modular design - hyperspectral camera

Photonfocus' unique modular camera system allows for quick integration of both proven and new technologies according to your application requirements.
