Particle Size Measurement Analyzer - VASCO Flex

  • Manufactured by: CORDOUAN Technologies

Quick Overview

The VASCO-FlexTM is a unique and fully agile nanoparticle size analyzer combining the power of Dynamic Light Scattering (DLS) and the flexibility of optical fibers.




Technologies & innovations
The main unit of the VASCO-Flex includes :



    Hig..

Contact us

Description

The VASCO-FlexTM is a unique and fully agile nanoparticle size analyzer combining the power of Dynamic Light Scattering (DLS) and the flexibility of optical fibers.




Technologies & innovations

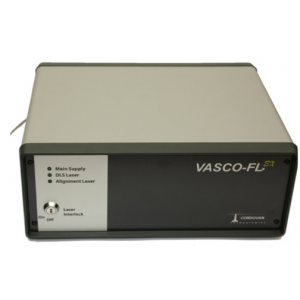

The main unit of the VASCO-Flex includes :



    High sensitivity - low noise single photon detector
    High resolution linear timescale correlator (up to 1000 channels)
    External high accuracy temperature sensor
    Visible alignment laser for easy positioning of the probe
    Various plug & play measurement head options with Optical Fiber umbilical



Main characteristics


    Particle size (diameter) : 0.5nm -10 um
    “A la carte” and pay-as-you-grow configuration
    Flexibility and upgradability with various plug and play options: one main unit and various interchangeable heads
    On-demand optical fiber umbilical length from 1m up to 20 m
    Powered by the NanoQ proprietary software


Interchangeable measurement heads



    VASCO-FLEX with Dual Thickness Controller head
    VASCO-FLEX with in situ head
    VASCO-FLEX with Thermalized head
    VASCO-FLEX with Custom head

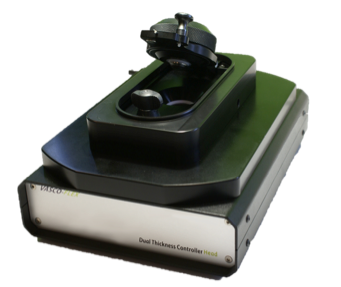

VASCO-FLEX with Dual Thickness Controller head



Dedicated to dark and highly concentrated solutions (VASCO like)

Features


    Ideal for concentrated and/or dark suspensions (inks, emulsions, crude oil, etc.)
    No consumable : indebted sample cell
    Online measurement option (on demand)
    Compact : ability to work in confined environment (glove box)


Applications

    Measurement in controlled environments
    Routine lab measurements

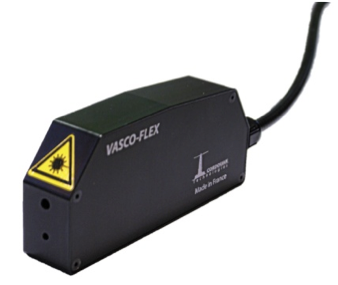

VASCO-FLEX with in situ head


DLS measurement into your process.

Features


    In situ and contactless measurements: no risk of contamination
    Robust & Compact : easy to integrate in limited access environment
    Embedded visible alignment laser: easy installation and accurate positioning
    Adjustable working distance /scattering angle
    Cost- & Time-saving : no consumable, no tedious batch sampling


Applications


    In situ process monitoring
    Instrumental coupling





VASCO-FLEX with Thermalized head


Features


    Broad temperature range : 5° to 80°C ; +/-0.05°
    Compact : ability to work in confined environment (glove box)
    Compatible with standard 10x10 mm2 cuvette (disposable or QS)
    No cross contamination, easy sampling
    Fluorescence filter option
    Various cuvette options : disposable cell, glass cell, micro-cell, flow cell ...


Applications


    Batch sampling measurements
    Routine lab measurements

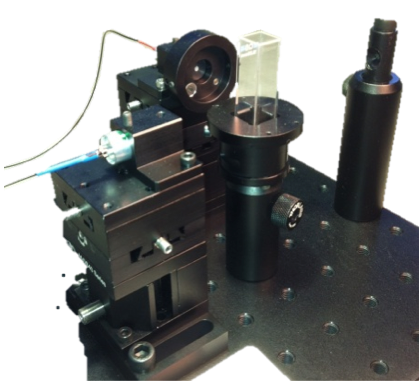

VASCO-FLEX with Custom head


Customize your own DLS set up.









Features

    Lab set up for dedicated and advanced applications
    On-demand configuration (scattering angle, beams position, Fluorescence filter option , type of cell, monitoring, thermalization, etc)

Applications

    Measurements in specific environments or specific conditions

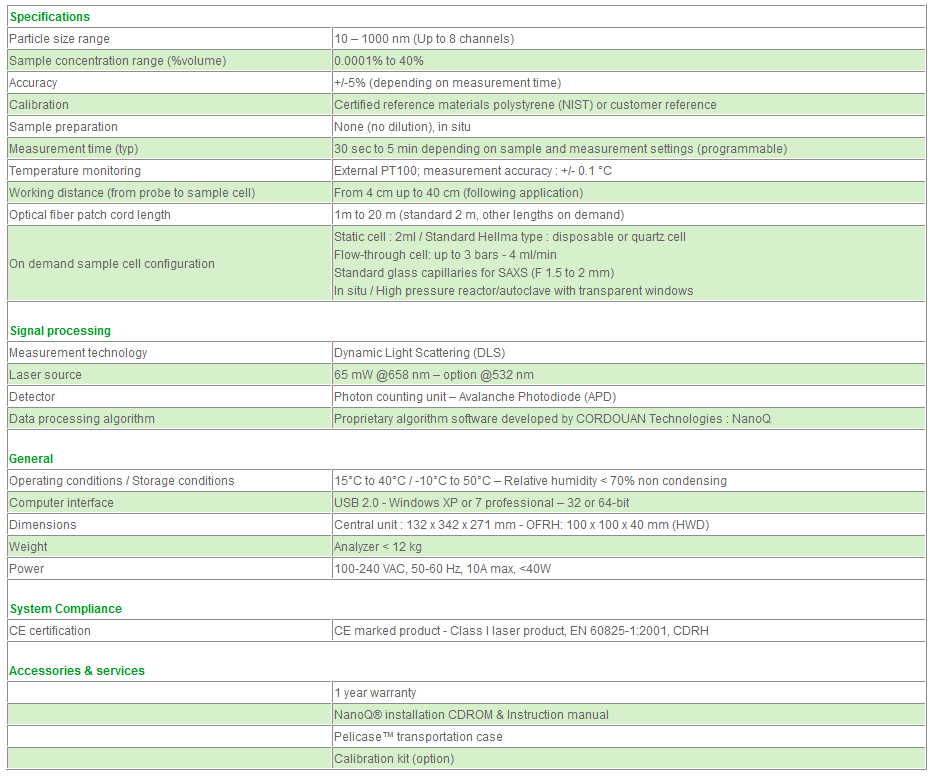

Specifications
pdf logo
Technote - PDF 1 Meg
