Anisotropic nanoparticle size measurements - Thetis

  • Manufactured by: CORDOUAN Technologies

Quick Overview

THETIS is the latest nano-particle size analyzer from Cordouan Technologies and represents a new step in the DLS technique for nano-particle size analysis. For the very first time, an instrument allows to measure easily length and width of anisotropic nanoparticles in the colloidal suspension.



Anisotropic Nanop..

Contact us

Description

THETIS is the latest nano-particle size analyzer from Cordouan Technologies and represents a new step in the DLS technique for nano-particle size analysis. For the very first time, an instrument allows to measure easily length and width of anisotropic nanoparticles in the colloidal suspension.



Anisotropic Nanoparticles


Advanced materials need more sophisticated nanoparticles such as carbon nanotubes or graphene, allowing the next generation of electrical transmitters.



nanoparticles



Hybrids nanoparticles are a promising solution for new materials properties, enhancing efficiency for specific properties or combining various properties.

Mastering these new anisotropic nanoparticles is essential for the development of such new materials. On another hand, viruses and proteins are showing anisotropic characteristics that need to be measured precisely.

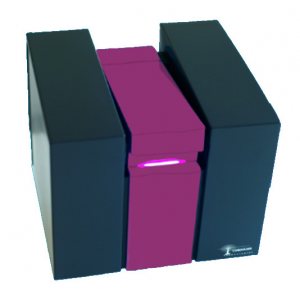

Thetis



The nano-particle size analyzer THETIS uses a novel Dynamic Light Scattering technique: the Depolarized Dynamic Light Scattering. Based on the analysis of scattered light fluctuations caused by the Brownian motion of particles and controlling the polarization state of the laser beam, D-DLS is very powerful technique of choice in colloidal sciences. It allows accurate particle size measurements from one nanometer up to a few microns in few seconds.


Thetis

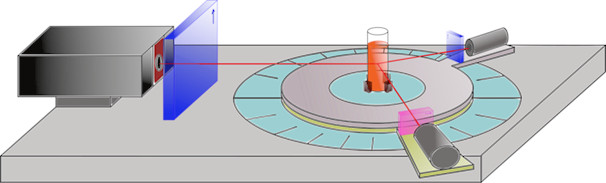

The instrument uses a high resolution multi-angle system allowing measuring scattering light intensity from 30 degrees to 160 degrees on both polarization modes. On each mode, a correlogram is built leading to the analysis of the complete size of your anisotropic nanoparticles.

A highly sensitive single photon Avalanche Photodiode Detector (APD) - connected to a dedicated fast acquisition electronic board - monitors the fluctuations of scattered light intensity in real time. The intensity of the light is registered for time-resolved analysis during and after measurements.





pdf logo
Thetis datasheet - PDF 0.3 Meg

Ask a question about the Anisotropic nanoparticle size measurements - Thetis





Manufacturer Informations

CORDOUAN Technologies

    After only four years of activities, Cordouan Technologies has constructed major expertise and become a reference in the world of N3 (Nanoparticles, Nanomaterials, Nanotechnologies).
