IGC100 Vacuum Gauge Controller

Manufactured by: SRS Stanford Research Systems

Quick Overview

1000 Torr to UHV range
Highly accurate, stable controller
Pressure vs. time curves
4 analog input/output ports
RS-232 interface
8-channel process control (opt.)
GPIB and Web interfaces (opt.)

The IGC100 is a high-accuracy vacuum gauge controller that offe..

Description

Description

1000 Torr to UHV range
Highly accurate, stable controller
Pressure vs. time curves
4 analog input/output ports
RS-232 interface
8-channel process control (opt.)
GPIB and Web interfaces (opt.)

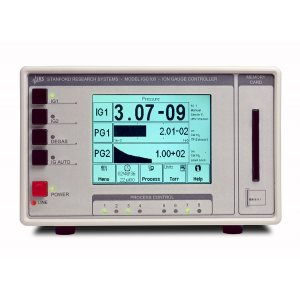

The IGC100 is a high-accuracy vacuum gauge controller that offers pressure measurement and process automation never before available in a single instrument. It measures pressure from Bayard-Alpert ionization gauges, convection-enhanced Pirani gauges, and capacitance manometers providing uninterrupted pressure readings from 1000 Torr to UHV.

The IGC100 has a touchscreen display that can present data in a variety of formats including pressure versus time curves. There are built-in relays for process control, and several multipurpose input/output ports. The IGC100 is also fully web-ready. Now you can monitor and control your vacuum system from the lab, your home, or anywhere in the world.

Accurate Measurements

The IGC100 is designed to be a highly accurate, stable controller. Its low noise, autoranging electrometer delivers high accuracy pressure readings into the UHV range. A low-noise, direct current (DC) supply powers the filament and establishes the emission current. The IGC100 precision electronics eliminate controller-to-controller variations and the measurement uncertainties (up to 15 %) associated with traditional instruments.

Graphical Touchscreen Display

The IGC100 has a large, back-lit LCD touchscreen display new to vacuum gauge controllers. The instrument shows large numeric readings from each gauge (easily read from across the room), and can also display readings in bar graph or trend format. The screen is updated twice a second and results are presented in units of Torr, mbar, bar, Pa or microns.

The IGC100 also displays pressure versus time curves (chart recordings), allowing you to follow pump down and venting cycles and to keep track of your vacuum systems performance.

IGC100 data is continuously logged into memory. There is a real-time clock with date for precise time stamps. In addition to pressure readings, you can log the ADC voltages and relay activity. Data can be viewed on the IGC100 or downloaded to your computer for further analysis.

Datasheet (PDF file)
