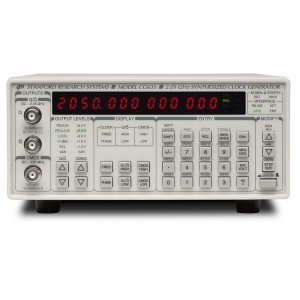

CG635 Synthesized Clock Generator

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

  • Clocks from 1 µHz to 2.05 GHz
  • <1 ps rms jitter
  • CMOS, PECL, ECL, LVDS, RS-485 outputs
  • Single-ended and differential outputs
  • Adjustable phase and time modulation
  • PRBS for eye-pattern testing (opt.)
  • OCXO and rubidium timebase (opt.)

The CG635 Synthe..

Contact us

Description

  • Clocks from 1 µHz to 2.05 GHz
  • <1 ps rms jitter
  • CMOS, PECL, ECL, LVDS, RS-485 outputs
  • Single-ended and differential outputs
  • Adjustable phase and time modulation
  • PRBS for eye-pattern testing (opt.)
  • OCXO and rubidium timebase (opt.)

The CG635 Synthesized Clock Generator provides precise, low-jitter digital clock signals for applications ranging from the development of digital circuits to the testing of communications networks.

The CG635 generates single-ended and differential clocks from 1 µHz to 2.05 GHz with sub-picosecond jitter. Clock frequencies may be set with 16 digits of resolution. Front-panel outputs have continuously adjustable offsets and amplitudes, and may also be set to standard logic levels including CMOS, PECL, ECL and LVDS. A rear-panel output delivers clocks at RS-485 and LVDS levels over twisted pairs.
