SIM Series

SIM Small Instrumentation Modules is a compact test and measurement platform for a wide range of applications. Unlike other modular systems, SIM offers complete front-panel as well as remote operation, allowing you to choose between manual and computer control. Up to eight instruments share the same mainframe which provides power, clock synchronization, communications, and module status. For additional versatility, you can cascade mainframes or other RS-232 instruments, and even operate modules outside the mainframe.

With SIM, you configure precision measurement and control systems, achieving the exact functionality you need while avoiding the cost of unnecessary features.

SIM900 Mainframe

Manufactured by: SRS Stanford Research Systems

Rugged, compact design 8 module slots 9th port for remote module 10 MHz reference with external sync Cascade multiple mainframes GPIB and RS-232 interfaces Start-up script memory SIM (Small.....
More Information

Power Supply for SRS SIM Series

Manufactured by:

Stand alone power supply designed for single Stanford Research Systems SRS SIM module series. Compatible with all SIM Series Input Voltage: 230 V Low cost .....
More Information

SIM910 JFET & SIM911 BJT Voltage Preamplifiers

Manufactured by: SRS Stanford Research Systems

4 nV/ƒHz input noise (SIM910) 1.8 nV/ƒHz input noise (SIM911) Low output noise 1 MHz bandwidth Selectable gain from 1 to 100 AC or DC coupled Differential or single-ended input 85 dB CMRR.....
More Information

SIM914 350 MHz Preamplifier

Manufactured by: SRS Stanford Research Systems

DC to 350 MHz bandwidth Two independent amplifier channels Voltage gain of 5 (14 dB) per channel 6.4 nV/ƒHz input noise 3 ns overload recovery Excellent phase linearity The SIM914 350 MHz.....
More Information

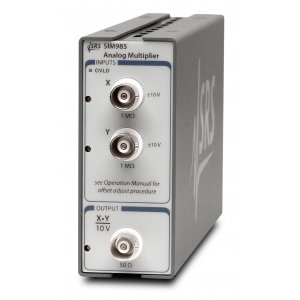

SIM985 - Analog multiplier - SRS stanford

Manufactured by: SRS Stanford Research Systems

The SIM985 is a true four-quadrant analog multiplier with a bandwith of up to 5 MHz. The front-panel X and Y inputs have a range of ±10 V, and the output is.....
More Information

SIM918 Precision Current Preamplifier

Manufactured by: SRS Stanford Research Systems

Input offset voltage <5 µV DC bias current <200 fA Current gain of 106 to 108 V/A 15 fA/ƒHz input noise (108 V/A) Autozero feature Bias voltage input The SIM918 Current Preamplifier.....
More Information

SIM921 AC Resistance Bridge

Manufactured by: SRS Stanford Research Systems

Accurate millikelvin thermometry Microvolt/picoamp excitation Measurements from 1 mW to 100 MW Variable excitation from 2 Hz to 60 Hz Linearized analog output Resistance, temperature and phase The.....
More Information

SIM922 & SIM923 Temperature Monitors

Manufactured by: SRS Stanford Research Systems

Four channels with independent displays 1.4 K to 475 K with silicon diodes 20 K to 873 K with platinum RTDs Memory for 4 calibration curves plus standard curve The SIM922 Diode Temperature Monitor.....
More Information

SIM922A & SIM923A Temperature Monitors

Manufactured by: SRS Stanford Research Systems

Single-channel LED display 1.4 K to 475 K with Si, GaAs or GaAlAs diodes 1.4 K to 873 K with RTDs Two analog outputs: Linearized V‚µT Sensor voltage (buffered) Remote interface The.....
More Information

SIM925 Octal Four-Wire Multiplexer

Manufactured by: SRS Stanford Research Systems

Eight input channels Four-pole relay switching Selectable buffer for V-sense lines Rear-panel bypass for unlimited daisy-chaining The SIM925 is an eight input channel, four-wire multiplexer for.....
More Information

SIM928 Isolated Voltage Source

Manufactured by: SRS Stanford Research Systems

±20 V isolated voltage source Ultra-low noise output Two switchable, recharging batteries for continuous operation Battery lifetime: 1000 charge cycles Output floats to ±40 V.....
More Information

SIM940 Rubidium Frequency Standard

Manufactured by: SRS Stanford Research Systems

Three 10 MHz outputs 1 pps input and output for GPS synchronization 20 year aging less than 0.005 ppm Ultra-low phase noise (<-130 dBc/Hz at 10 Hz) Remote interface The SIM940 integrates a.....
More Information

SIM960 Analog PID Controller

Manufactured by: SRS Stanford Research Systems

Analog signal path with digital control 100 kHz bandwidth Low-noise front end P, I, D and Offset settable to 0.5 % Anti-windup (fast saturation recovery) Bumpless transfer, manual to PID Analog.....
More Information

SIM964 Analog Limiter

Manufactured by: SRS Stanford Research Systems

Settable upper & lower limits (±10 V) 10 mV resolution 1 MHz bandwidth TTL outputs for limit detecting High slew rate The SIM964 Analog Limiter provides upper and lower voltage limits for.....
More Information

SIM965 Analog Filter

Manufactured by: SRS Stanford Research Systems

Bessel and Butterworth filter types 1 Hz to 500 kHz 3-digit cutoff frequency resolution High-pass or low-pass operation Selectable rolloff Continuous time (not sampled) The SIM965 Analog Filter is.....
More Information

SIM970 Quad Digital Voltmeter

Manufactured by: SRS Stanford Research Systems

True 5½-digit performance Four isolated channels Bright 7-segment LED displays Three decade autoranging to ±19.9999 V 10 MW input impedance External trigger for data synchronization.....
More Information

SIM980 Summing Amplifier

Manufactured by: SRS Stanford Research Systems

Four summing inputs ±10 V operating range 1 MHz bandwidth Low crosstalk (-80 dB) <100 µV input offset High slew rate The SIM980 Summing Amplifier has four input channels that can be.....
More Information

SIM983 Scaling Amplifier

Manufactured by: SRS Stanford Research Systems

Adjustable gain and offset 3½-digit resolution 1 MHz bandwidth Low-noise input Â±10 V operating range The SIM983 Scaling Amplifier provides fine adjustable gain and offset control.....
More Information

Displaying 1 to 18 (of 18 new products)
