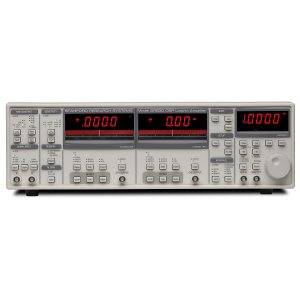

SR810 & SR830 Lock-In Amplifier

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

The SR810 Lock-In Amplifier and SR830 Lock-In Amplifier provide high performance at a reasonable cost.



The SR810 and SR830 DSP Lock-In Amplifiers provide high performance at a reasonable cost. The SR830 simultaneously displays the magnitude and phase of a signal, while the SR810 displays the magnitude only. Both instru..

Contact us

Description

The SR810 Lock-In Amplifier and SR830 Lock-In Amplifier provide high performance at a reasonable cost.



The SR810 and SR830 DSP Lock-In Amplifiers provide high performance at a reasonable cost. The SR830 simultaneously displays the magnitude and phase of a signal, while the SR810 displays the magnitude only. Both instruments use digital signal processing (DSP) to replace the demodulators, output filters, and amplifiers found in conventional lock-ins. The SR810 and SR830 provide uncompromised performance with an operating range of 1 mHz to 102 kHz and 100 dB of driftfree dynamic reserve.



1 mHz to 102.4 kHz frequency range

>100 dB dynamic reserve

5 ppm/°C stability

0.01 degree phase resolution

Time constants from 10 µs to 30 ks
(up to 24 dB/oct rolloff)

Auto-gain, -phase, -reserve and -offset

Synthesized reference source

GPIB and RS-232 interfaces



Datasheet (PDF file)
