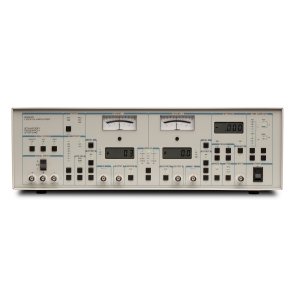

SR510 & SR530 Lock-In Amplifier

  • Manufactured by: SRS Stanford Research Systems

Quick Overview

The SR510 and SR530 are analog lock-in amplifiers which can measure AC signals as small as nanovolts in the presence of much larger noise levels.



Both the single phase SR510 and the dual phase SR530 have low-noise voltage and current inputs, high dynamic reserve, two stages of time constants, and an inte..

Contact us

Description

The SR510 and SR530 are analog lock-in amplifiers which can measure AC signals as small as nanovolts in the presence of much larger noise levels.



Both the single phase SR510 and the dual phase SR530 have low-noise voltage and current inputs, high dynamic reserve, two stages of time constants, and an internal oscillator. In addition, both lock-ins come equipped with a variety of features designed to make them simple to use.



The core of the SR510/SR530 is a precision analog sine-wave multiplier. Lock-ins use a multiplier (demodulator) to translate the signal input (at reference frequency) down to DC where it can be filtered and amplified. Many lock-ins use square wave multipliers which introduce spurious harmonic responses. The SR510/SR530 use clean sine-wave multipliers which are inherently free of unwanted harmonics.



0.5 Hz to 100 kHz frequency range

Current and voltage inputs

Up to 80 dB dynamic reserve

Tracking band-pass and line filters

Internal reference oscillator

Four ADC inputs, two DAC outputs

  • GPIB and RS-232 interfaces
