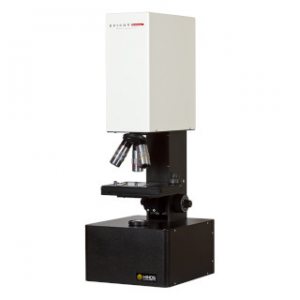

Birefringence Imaging Microscope - Exicor Microimager

  • Manufactured by: Hinds Instruments

Quick Overview

The Hinds Birefringence Imaging Microscope is ideal for measuring birefringence in biological structures, glass, crystals, and many other organic and inorganic samples.


Features:

- No Dyes or Fluorescent labels required
- Measures retardation, angle and intensity
- Images retardatio..

Description

The Hinds Birefringence Imaging Microscope is ideal for measuring birefringence in biological structures, glass, crystals, and many other organic and inorganic samples.


Features:

- No Dyes or Fluorescent labels required
- Measures retardation, angle and intensity

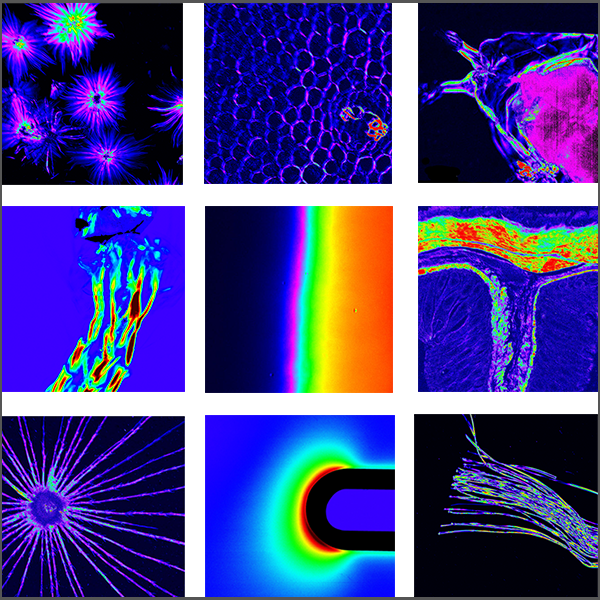

- Images retardation, angle and intensity
- Allows color maps to be customized by user for optimal display of data
- Allows maximum, average, and standard deviation over entire image and in user-selected areas or lines
- View data by intensity, birefringence/retardation, angle, or combination
- Histograms for statistical analysis
- User calibration
- Export of data in .csv and binary formats
- Export of data from user selected areas
- Export images in bit, png or tiff formats
- Compatability with third party analysis tool, ImageJ


Phase unwrapping technology is now included with every MicroImager.


For highly birefringent samples, the Exicor® MicroImagerTM has the ability to measure up to 3500nm with 4 color configuration and up to 2400nm with 3 color configuration.



Scan with Hinds unit





pdf_logo

Exicor Microimager spec. - PDF 1.3 Meg

Ask a question about the Birefringence Imaging Microscope - Exicor Microimager





Manufacturer Informations

Hinds Instruments

    Hinds Instruments develops and manufactures polarization measurement instrumentation for research and industry.

    Hinds Instruments build photoelastic modulator-based systems and components that exploit the high sensitivity of PEM polarization analysis technology for a wide variety of applications including birefringence, stokes polarimetry, dichroism, optical rotation and others in research, metrology and on-line environments.
